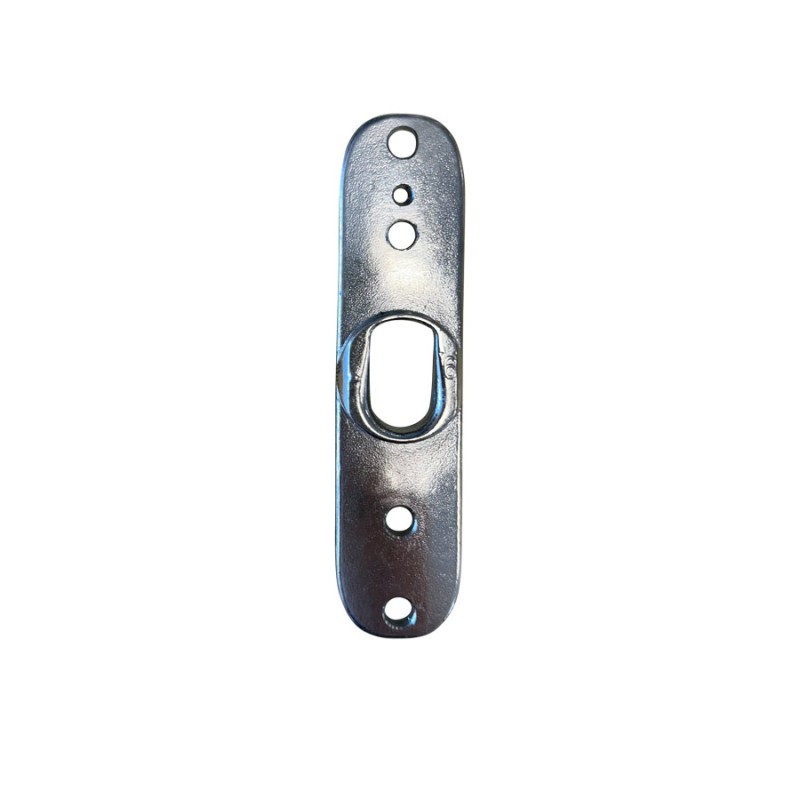

Selden Backing Plates
TMS-507-600-01
Various sizes available
For use with Selden T-terminals For Shrouds only
3-5mm Pressed Stainless in line holes
6-7mm Cast Stainless in line holes
8-10mm Cast Stainless holes in triangular arrangement
More Information
Selden Backing Plate Data Sheet
The 8mm size is for mast sections C174 and C245 only

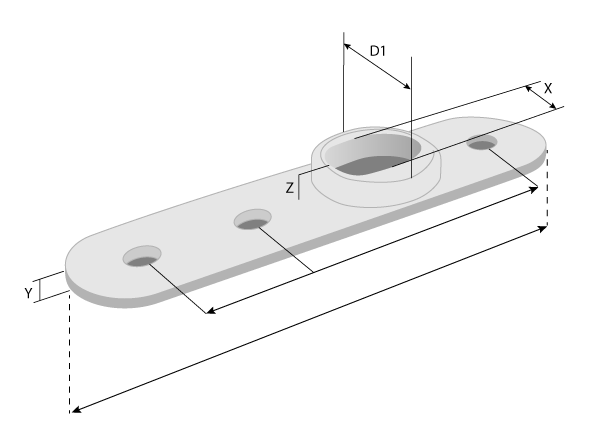

Selden Backing Plate Dimensions
| REF | Wire Dia | LOA (mm) | Outside Holes (mm) | Inside Holes (mm) | D1 (mm) | X (mm) | Y (mm) | Z (mm) |
| 3mm | ||||||||
| TMS-507-551-01 | 4mm | 60.18 | 44.27 | n/a | 19.21 | 9.3 | 1.52 | 3.46 |
| TMS-507-552-01 | 5mm | 74.85 | 59.56 | 44.52 | 21.73 | 11.75 | 1.99 | 6.15 |
| TMS-507-600-01 | 6mm | 121.87 | 107.88 | 75.48 | 29.83 | 14.83 | 7.3 | 5.63 |
| TMS-507-601-01 | 7mm | 121.74 | 107.1 | 74 | 32.5 | 15.8 | 8.4 | 7.5 |
