Bluewave Dyneema Rope T
Bluewave Dyneema Rope T
Bluewave Dyneema Rope T dimensions

Designed for Dyneema Rigging Termination

Unique internal former for sympathetic turning radius and secure termination

Advanced Blue Wave casing design provides UV and abrasion protection for the rope splice

Highly polished stainless steel AISI 316

Simple to strip down and reassemble for inspection and maintenance

Select by line diameter and T dimension, see chart and diagram below

Stocked at the manufacturer, please allow 3-4 weeks for delivery. Exceptions below.

£64.00

Please enquire about lead times

More Information
Accessories

The following sizes are in stock in the UK.

5mm (T9), 6mm (T12.6), 4mm (T7.5)

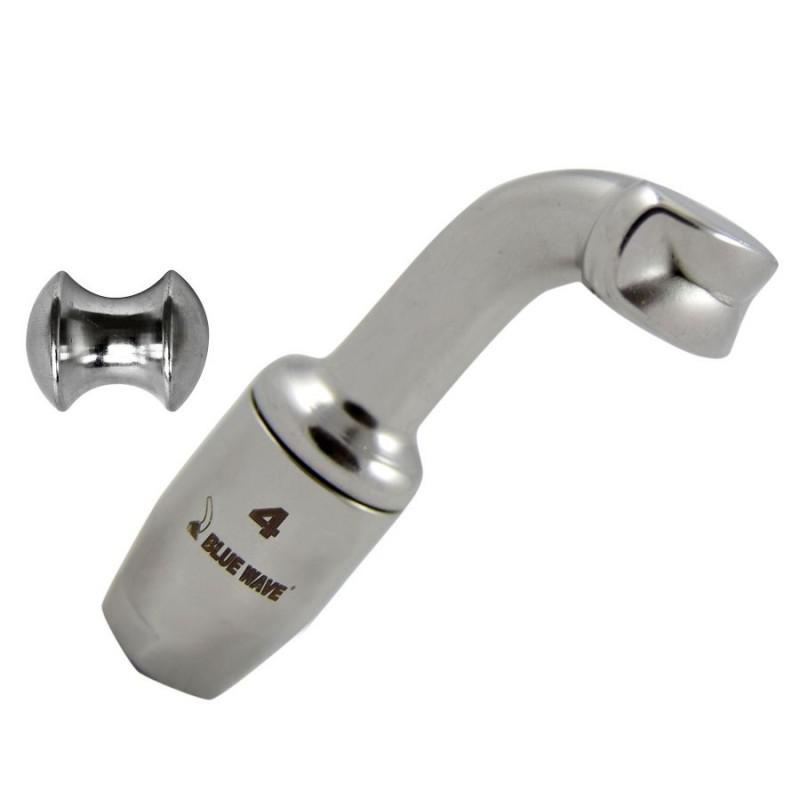

Blue Wave Dyneema Rope T Terminal, manufactured from polished AISI316 marine-grade stainless steel.

Blue Wave has developed a range of rope terminals to complement the advantages of Dyneema® and Vectran® lines for running and standing rigging.

The Blue Wave Technical Team has designed a unique internal bail (also known as a bone or former) for the line to pass around and back into the locking tuck and splice.

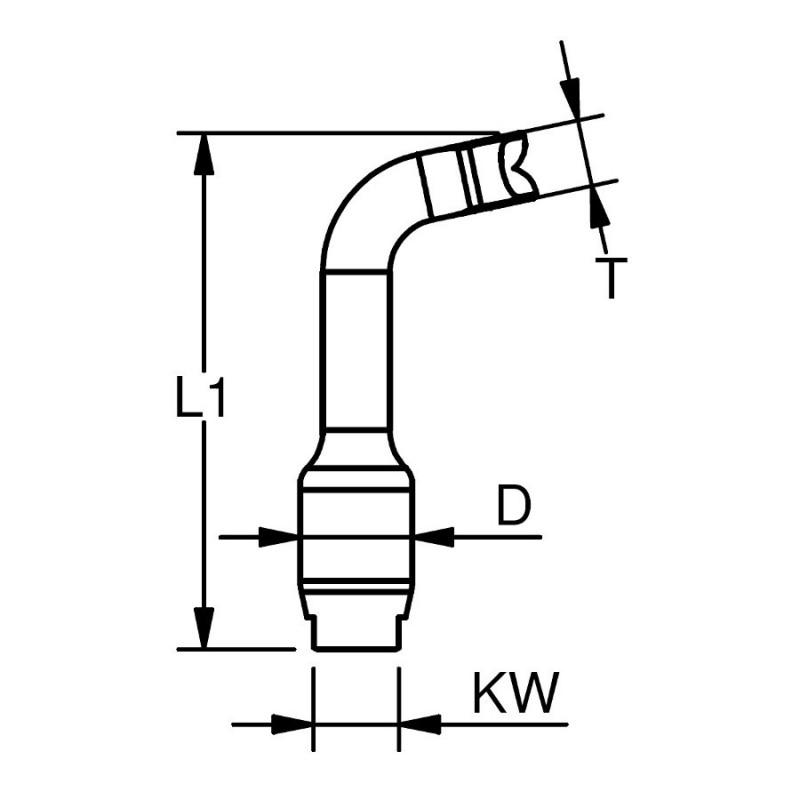

Blue Wave Dyneema Rope T dimensions

Blue Wave Dyneema Rope T Specifications
Blue Wave Rope Ø D T L1 KW MBL To Fit Backing Plate
BW-RP867504 4mm 16mm 7.5mm 66mm 11mm 1500kg BW-616105
BW-RP860904 4mm 16mm 9mm 72mm 11mm 1900kg BW-616105
BW-RP860905 5mm 21mm 9mm 82mm 16mm 2800kg BW-616105
BW-RP861205 5mm 21mm 12.6mm 97mm 16mm 3200kg BW-616107
BW-RP861206 6mm 25mm 12.6mm 109mm 19mm 5000kg BW-616107
BW-RP861406 6mm 25mm 14.2mm 115mm 19mm 5500kg BW-616107
BW-RP861608 8mm 39mm 16mm 151mm 29mm 8000kg BW-616110
BW-RP861808 8mm 39mm 17.8mm 154mm 29mm 9400kg BW-616110

Dyneema Rope End Fitting Instructions

Simple to fit to existing rigging screws and deck fittings:

Bluewave Dyneema Rope Terminal exploded Parts illustration - 3 parts = Housing - Bone - Eye

Bluewave Dyneema Rope Terminal Housing Slide the housing over the rope

Bluewave Dyneema Rope Terminal Splice the Dyneema line around the bone

Bluewave Dyneema Rope Terminal splice exploded Pull the spliced bone back into the housing - ensure that the splice and bone are seated properly.

Bluewave Dyneema Rope Terminal completed Screw the housing and the eye firmly together - the thread can be locked with Loctite

Blue Wave T-Terminal Backing Plates
