Colligo Marine Distributor Dimensions

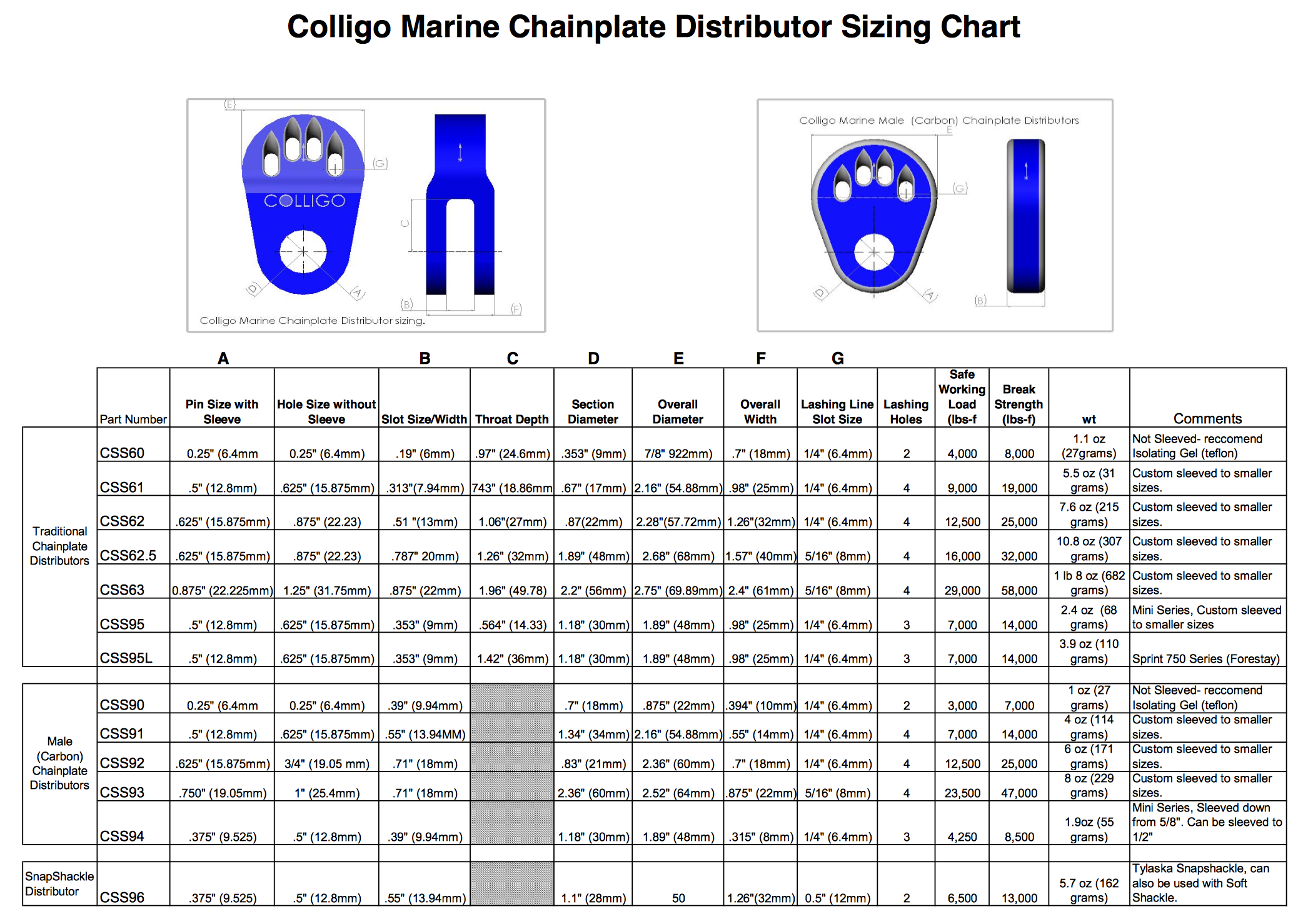

Chainplate Distributor Size Chart
|
Part Number |
Pin Size with Sleeve |
Hole size without sleave |
Slot Size / Width |
Throat Depth |
Section Diameter |
Overall Diameter |
Overall Width |
Lashing Line Slot Size |
Lashing Holes |
Safe Working Load (lbs-f) |
Break Strength (lbs-f) |
Weight |
Comments |
|
|
A |
|
B |
C |
D |
E |
F |
G |
|
|
|
|
|
| Tradtional Chain Plate Distributor |
CSS60 |
0.25" (6.4mm) |
0.25" (6.4mm) |
.19" (6mm) |
.97" (24.6mm) |
.353" (9mm) |
7/8* 922mm) |
.7 (18mm) |
1/4" (6.4mm) |
2 |
4,000 |
8,000 |
1.1 oz (27 g) |
Not Sleeved - recommend Isolating Gel (teflon) |
| CSS61 |
.5" (12.8mm) |
.625" (15.875mm) |
.313"(7.94mm) |
743" (18.86mm) |
.67" (17mm) |
2.16" (54.88mm) |
.98" (25mm) |
1/4" (6.4mm) |
4 |
9,000 |
19000 |
5.5 oz (31 g) |
Custom sleeved to smaller sizes |
| css62 |
.625" (15.875mm) |
.875" (22.23mm) |
.51" (13mm) |
1.06" (27mm) |
.87 (22mm) |
2.28" (57.72mm) |
1.26" (32mm) |
1/4" (6.4mm) |
4 |
12,500 |
25,000 |
7.6 oz (215 g) |
Custom sleeved to smaller sizes |
| CSS62.5 |
.625" (15.875mm) |
.875" (22.23mm) |
.787" (20mm) |
1.26" (32mm) |
1.89" (48mm) |
2.68" 68mm |
1.57' (40mm) |
5/16" (8mm) |
4 |
16,000 |
32,000 |
10.8 oz (307 g) |
Custom sleeved to smaller sizes |
| CSS63 |
0.875" (22.225mm) |
1.25" (31.75mm) |
.875" (22mm) |
1.96" (49.78) |
2.2" (56mm) |
2.75" (69.89mm) |
2.4" (61mm) |
5/16" (8mm) |
4 |
29,000 |
58,000 |
1 lb 8 oz (682 g) |
Custom sleeved to smaller sizes |
| CS95 |
.5" (12.8mm) |
.625" (15.875mm) |
.353" (9mm) |
.564" (14.33) |
1.18" (30mm) |
1.89" (48mm) |
.98" (25mm) |
1/4" (6.4mm) |
3 |
7,000 |
14,000 |
2.4 oz (68 g) |
Mini Series, Custom sleeved to smaller sizes |
| CSS95L |
.5" (12.8mm) |
.625" (15.875mm) |
.353" (9mm) |
1.42" (36mm) |
1.18" (30mm) |
1.89" (48mm) |
.98" (25mm) |
1/4" (6.4mm) |
3 |
7,000 |
14,000 |
3.9 oz (110 g) |
Sprint 750 Series (Forestay) |
| Male (Carbon) Chainplate Distributors |
CSS90 |
0.25" (6.4mm) |
0.25" (6.4mm) |
.39" (9.94mm) |
|
.7" (18mm) |
.875" 22mm |
.394" (10mm) |
1/4" (6.4mm) |
2 |
3,000 |
7,000 |
1 oz (27 g) |
Not Sleeved - recommend Isolating Gel (teflon) |
| CSS91 |
.5" (12.8mm) |
.625" (15.875mm) |
.55" (13.94mm) |
|
1.34" (34mm) |
2.16" (54.88mm) |
.55' (14mm) |
1/4" (6.4mm) |
4 |
7,000 |
14,000 |
4 oz (114 g) |
Custom sleeved to smaller sizes |
| CSS92 |
.625" (15.875mm) |
3/4" (19.05 mm) |
.71" (18mm) |
|
.83" (21mm) |
2.36" (60mm) |
.7 (18mm) |
1/4" (6.4mm) |
4 |
12,500 |
25,000 |
6 oz (171 g) |
Custom sleeved to smaller sizes |
| CSS93 |
.750" (19.05mm) |
1" (25.4mm) |
.71" (18mm) |
|
2.36" (60mm) |
2.52" (64mm) |
.875" (22mm) |
5/16" (8mm) |
4 |
23,500 |
47,000 |
8 oz (229 g) |
Custom sleeved to smaller sizes |
| CSS94 |
.375" (9.5) |
.5" (12.8mm) |
.55" (13.94mm) |
|
1.18" (30mm) |
1.89" (48mm) |
.315" (8mm) |
1/4" 6.4mm |
3 |
4,250 |
8,500 |
1.9 oz (55 g) |
Mini Series, Custom Sleeved down from 5/8". Can be sleeved to 1/2" |
| SnapShackle Distributor |
CSS96 |
.375" (9.525) |
.5" (12.8mm) |
.39" (9.94mm) |
|
1.1" (28mm) |
50 |
1.26" (32mm) |
0.5" (12mm) |
2 |
6,500 |
13,000 |
5.7 oz (162 g) |
Tylaska Snapshackle, can also be used with Soft Shackle |
