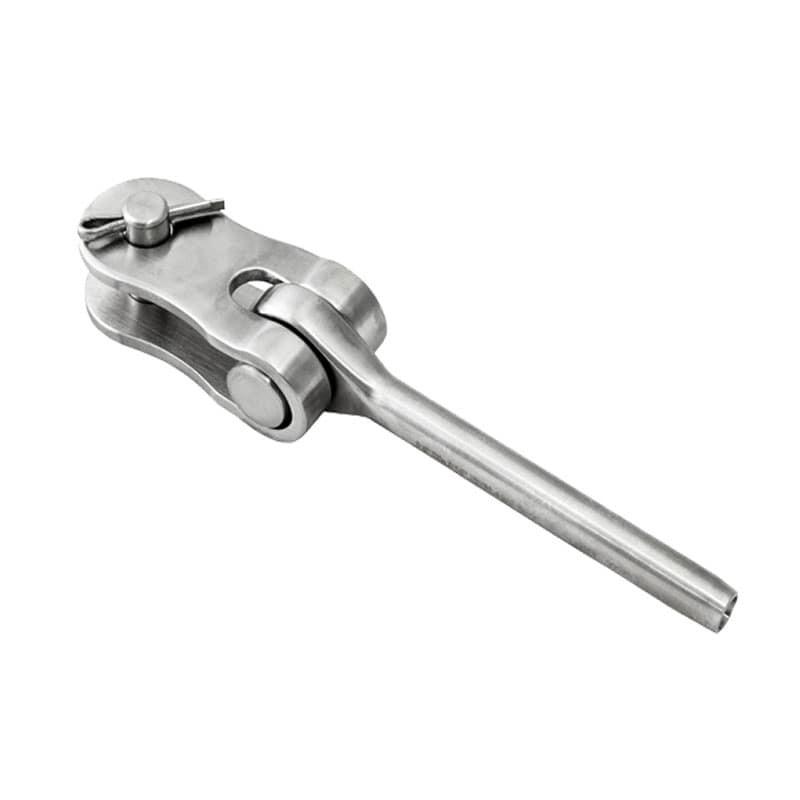

Hamma Regatta Machine Swage Toggle Forks
TMS-HM-SWTM-0405
Constructed from grade 316 stainless steel and manufactured using the latest cutting edge technology.
High corrossion resistant.
See chart for dimensions.
More Information
Accessories
| Item | Wire Size | A | B | C | E | L |
|---|---|---|---|---|---|---|
| 4mm - 5/16" | 4mm | 8mm | 9mm | 35mm | 12mm | 105mm |
| 5mm - 5/16" | 5mm | 8mm | 9mm | 35mm | 12mm | 115mm |
| 5mm - 3/8" | 5mm | 9.5mm | 11mm | 40.5mm | 14mm | 123.5mm |
| 6mm - 3/8" | 6mm | 9.5mm | 11mm | 40.5mm | 14mm | 134.5mm |
| 6mm - 7/16" | 6mm | 11mm | 14mm | 49mm | 16mm | 150mm |
| 6mm - 1/2" | 6mm | 12.7mm | 14mm | 49mm | 16mm | 150mm |
| 7mm - 7/16" | 7mm | 11mm | 14mm | 49mm | 18mm | 162mm |
| 7mm - 1/2" | 7mm | 12.7mm | 14mm | 49mm | 18mm | 162mm |
| 8mm - 1/2" | 8mm | 12.7mm | 14mm | 49mm | 18mm | 176mm |
| 8mm - 5/8" | 8mm | 16mm | 18mm | 61mm | 21mm | 194mm |
| 10mm - 5/8" | 10mm | 16mm | 18mm | 61mm | 21mm | 220mm |
| 10mm - 3/4" | 10mm | 19mm | 22mm | 70mm | 24mm | 235mm |
| 12mm - 3/4" | 12mm | 19mm | 22mm | 70mm | 24mm | 262mm |
| 12mm - 7/8" | 12mm | 22mm | 25mm | 75mm | 29mm | 274mm |
| 14mm - 7/8" | 14mm | 22mm | 25mm | 75mm | 29mm | 297mm |
| 16mm - 1" | 16mm | 25mm | 28mm | 92mm | 31.5mm | 344mm |
