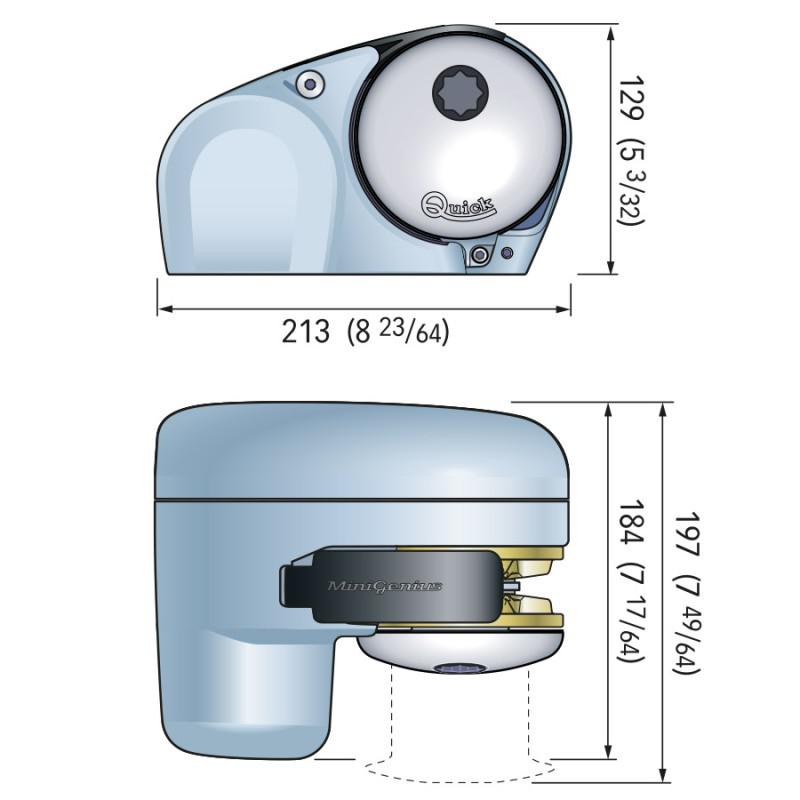

Quick Genius GP2 1500 Windlass
TMS-FSGP21500D06
For yachts 6 - 10 metres in length (20 - 33 ft)
Automatic Free-Fall System
Epicyclical gearbox
Integrated sensor and magnet for chain counter
Rope/Chain combination gypsy
With or without Drum
More Information
Features
Downloads
Quick Genius GP2 1500 Windlass Facts and Features:
- Horizontal on-deck windlasses
- Anodized aluminium in hard oxide base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Available with manual Free-Fall system
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclical gearbox
- Automatic Free-Fall System
Automatic Free-Fall System
The Free-Fall technology allows free running of chain through the gypsy when lowering the anchor.
Included in the box: Contactor (Control Box) and Nylon handle
Not included in the box: Circuit Breaker, Switches and Controls
Specifications
- Motor power 500 W
- Motor supply voltage 12 V
- Maximum pull 680 Kg / 1499 lb
- Maximum working load 250 Kg / 551 lb
- Working load 85 Kg / 187 lb
- Current absorption @ working load (1) 76 A
- Maximum chain speed (2) 25,5 m/min / 83.7 ft/min
- Maximum chain speed @ working load (2) 10,3 m/min / 33.8 ft/min
- Weight without drum 10,2 Kg / 22.4 lb
- Weight with drum 11,5 Kg / 25.3 lb
- Weight with FF 10,9 Kg / 24 lb
The measurements are taken from after an initial period of use with a gypsy for 8 mm chain.
| Model | Power | LOA Metres | LOA Feet |
|---|---|---|---|
| GP2 1500 | 500 W | 6 - 10 m | 20 - 33 ft |
| Gypsy | Chain | Rope |
|---|---|---|
| 6mm | 6mm DIN 766 | 12mm 3 Strand |
| 8mm | 8mm DIN 766 | 12mm 3 Strand |
- Chain Size - 6mm
- Chain Size - 8mm
- Boat Length (Windlasses) - up to 20 feet
- Boat Length (Windlasses) - up to 25 feet
- Boat Length (Windlasses) - up to 30 feet
- Boat Length (Windlasses) - up to 35 feet
- Horizontal or Vertical - Horizontal
