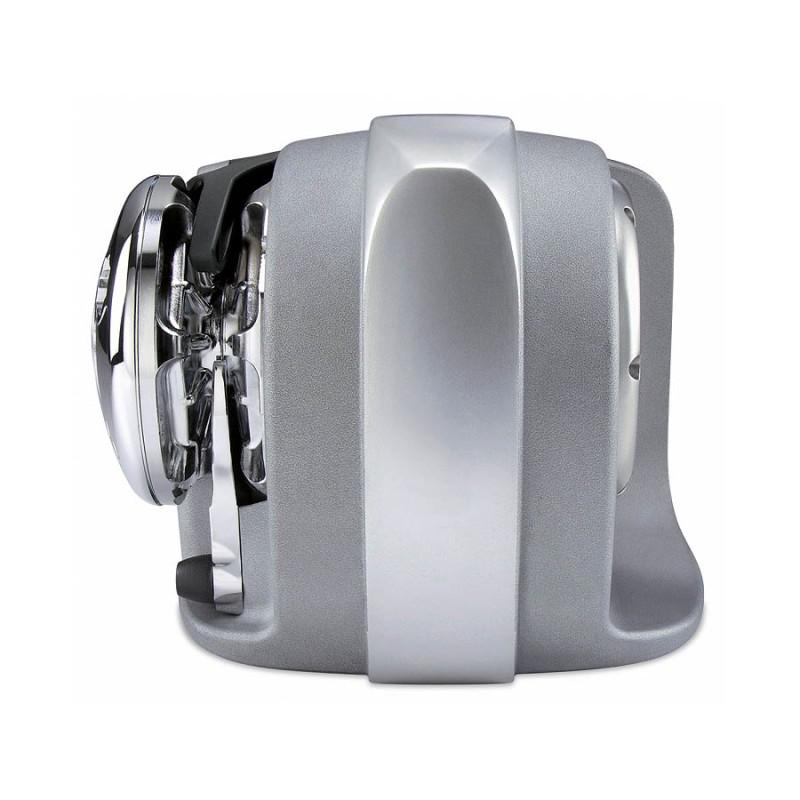

Quick Hector HC3 1512 Horizontal Windlass Kits - 8mm DIN766 or 10mm ISO4565
AQU-Q-HC3251103K
Quick Recommendation: yachts from 12 to 15 metres in length
100% on-deck unit - no parts in the chain locker
Corrosion-resistant composite casing, anodised aluminium base
12V 1500W IP66-rated water ingress protection motor with Integral Contactor (Solenoid)
Manual Free-Fall System
24V and warping drum options also available, please enquire
Included in the kit:
On-deck motor, solenoid (control box) and gearbox windlass unit, Technopolymer handle, windlass panel switch, 100A hydromagnetic circuit breaker, assembly bolts and screws, drilling template, and user manual.
More Information
Features
Downloads
Quick Spa Italy is recognised globally for Windlass Design, Manufacturing Quality, and Craftsmanship. The Hector HC3 Windlass Series features a horizontal axis combination rope/chain gypsy with the motor and gearbox housed in a durable composite on-deck casing unit with a hard-coat anodised aluminium base.
Quick Hector HC3 1500 Windlass Facts, Features and Plus Factors:
- Horizontal axis windlass
- On-deck unit includes the motor, gearbox and control box - no parts in the chain locker
- Durable composite casing with an anodised aluminium base
- Integrated solenoid (control box) unit
- Combination rope/chain gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall System
- Emergency Manual Retrieval System
- Rope/Chain Pressure Lever
- IP66 watertight motor
- 24V and with drum options available
Included in the box: Windlass, Motor and Gearbox Deck Unit, Integrated Solenoid (control box), Technopolymer Handle, deluxe windlass panel switch, 100A hydromagnetic circuit breaker, Assembly Bolts and Screws, Drilling Template, User Manual
Quick WCS 810 (830) Deluxe Windlass Up and Down Control Rocker Switch - Reference: Q-WCS810 - Quick: FPWCS8100000A00
- Switch panel for bulkhead installation
- Positive Rocker Up and Down Control
Quick 10100 Hydraulic Magnetic Circuit Breaker 100A / DC - Reference: Q-CB10100 - Quick: FD1010000000A00
- Slow burn circuit breaker protection for direct current with a manual reset button.
- Designed to trip (break) the circuit and protect your equipment in the event of any short or prolonged overload in the electrical current system.
Not included in the box: Remote Controls
Dimensions: See images above
| Motor power | 1500W |
|---|---|
| Motor supply voltage | 12V |
| Maximum pull | 1500kg |
| Maximum working load | 450kg |
| Working load | 150kg |
| Current absorption @ working load | 150A (after a period of initial use) |
| Maximum chain speed | 32.4 metres per minute (based on 8mm chain) |
| Maximum chain speed @ working load (2) | 17.8 metres per minute (based on 8mm chain) |
| Weight, without drum | 24kg |
| Through-Deck Mounting Holes | 11mm |
| Deck Thickness Range | 20mm - 60mm |
| Recommended Cable Size | AWGO 50mm2 |
| Gypsy | Chain | Rope |
|---|---|---|
| 8mm | 8mm DIN766 | 12mm and 14mm 3 Strand |
| 10mm | 10mm ISO4565 (P30) | 16mm 3 Strand |
- Chain Size - 8mm
- Chain Size - 10mm
- Boat Length (Windlasses) - up to 45 feet
- Boat Length (Windlasses) - up to 50 feet
- Boat Length (Windlasses) - up to 40 feet
- Horizontal or Vertical - Horizontal
