Quick DP2L 770 Vertical Windlass Kit - 6mm and 7mm DIN766
AQU-Q-DP2L071101K
Everything required for a simple installation is included in the box
Quick recommendation: for boats 6-8 metres length overall
Power: 12V / 350W
Stainless steel Deck Unit
Manual Free-Fall system
Integrated sensor and magnet for chain counter
Super Hybrid Gypsy to suit 6mm or 7mm chain and 12mm 3 strand warp
Kit includes deck unit, motor gearbox, contactor unit (control box), base gasket, handle, windlass panel switch, 40A hydromagnetic circuit breaker, assembly bolts and screws, drilling template, and user manual.
More Information
Features
Downloads
Quick Prince DP2L 770 Vertical Windlass Kit
The Quick Prince DP2L vertical windlass has a stainless steel AISI 316 base and BHC construction with a rope and chain on a single gypsy.
The DP2L is suitable for power and sailboats between 5 metres and 8 metres in length overall.

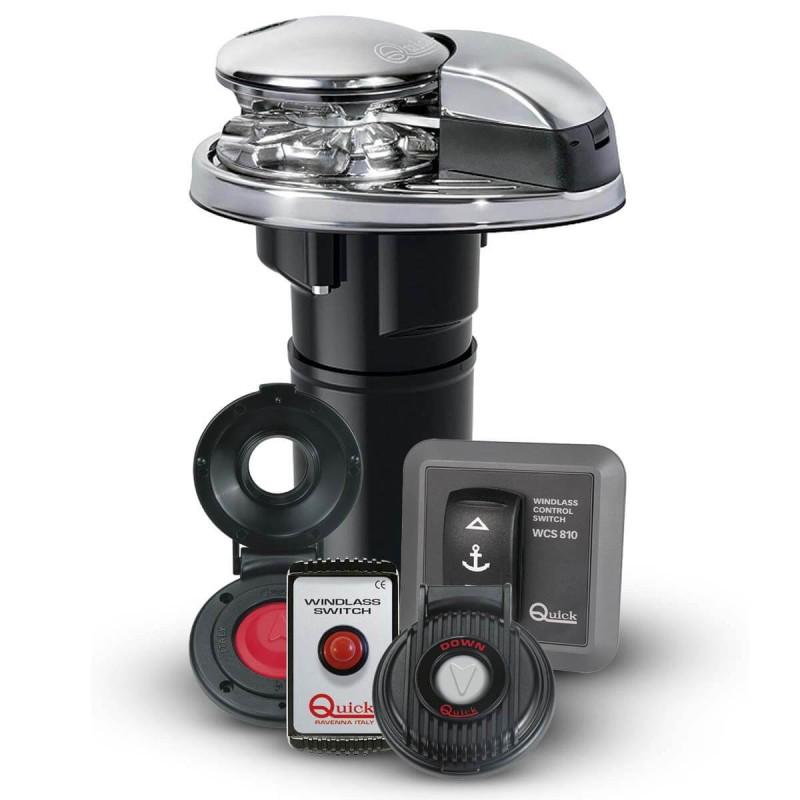

Included in the box: Windlass (deck unit and motor gearbox), reversing contactor unit, base gasket, nylon handle, windlass panel switch, 40A hydromagnetic circuit breaker, foot switches, assembly bolts and screws, drilling template, user manual and warranty details.

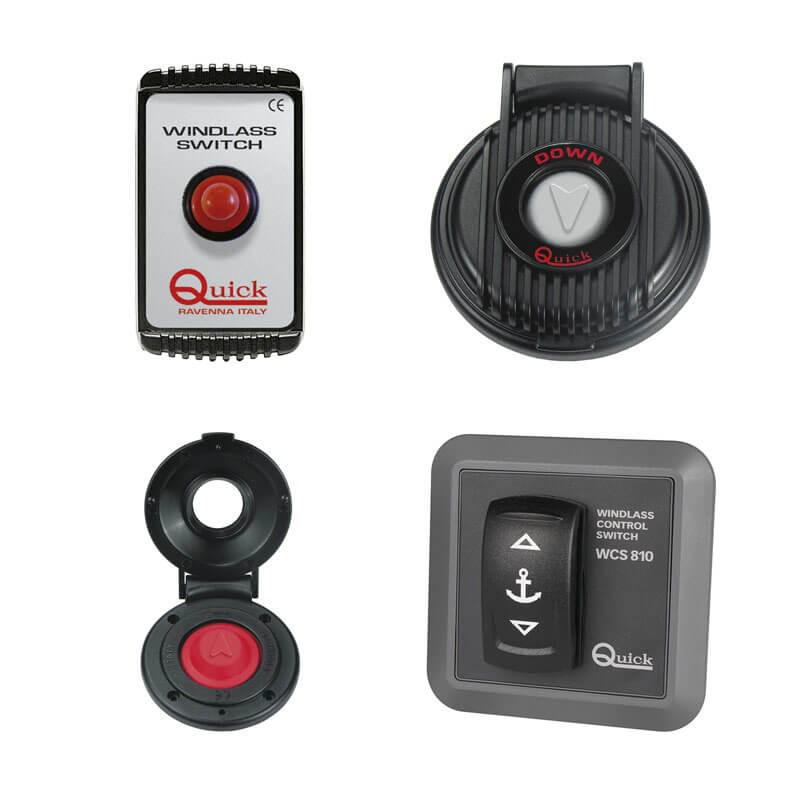

Quick T64112-BTQ Contactor 12V - Reference: Q-FVST64111200A00 - Quick: FVST64111200A00
- IP66 water ingress-rated casing
- External connections for simple wiring installation
Quick WCS 810 (830) Deluxe Windlass Up and Down Control Rocker Switch - Reference: Q-WCS810 - Quick: FPWCS8100000A00
- Switch panel for bulkhead installation
- Positive Rocker Up and Down Control
Quick 10040 Hydraulic Magnetic Circuit Breaker 40A / DC - Reference: Q-CB10040 - Quick: FD1004000000A00
-
- Slow burn circuit breaker protection for direct current with a manual reset button.
- Designed to trip (break) the circuit and protect your equipment in the event of any short or prolonged overload in the electrical current system.
Quick Quick Windlass Foot Switches 900 - Reference: Q-FP900/U and Q-FP900/D
-
- Up and Down options included
- Designed to keep your hands free when anchoring
- Low profile minimises the chances of tripping
- Protective safety cover prevents accidental operation
Quick Prince DP2L 770 Vertical Windlass Kit Facts, Featuires and Plus Factors:
- Everything required for a simple installation is included in the box
- Stainless steel AISI 316 Deck Unit
- BHC material gearbox
- Rope and chain on a single gypsy
- Hybrid new generation gypsy to suit 6mm and 7mm chain
- Integrated sensor and a magnet for chain counter
- Manual Free-Fall system
- Integral Rope / Chain Pressure Lever
- Removable Inspection Cover
- IP66 ingress-rated watertight motor
| Quick DP2L 770 Specifications | |
| Boat Length, Quick Recommendation | 6 - 8 metres |
| Power and Voltage | 350W / 12V |
| Maximum Pull | 350kg |
| Maximum Working Load Pull | 80kg |
| Working Load | 40kg |
| Current Consumption at Working Load | 30A - after an intitial period of use |
| Maximum Retrieval Speed | 17 metres per minute (based on 8mm chain) |
| Retrieval Speed at Working Load | 15 metres per minute (based on 8mm chain) |
| Circuit Breaker | 40A |
| Weight | 9kg |
| Chain Size | 6mm DIN766, 7mm DIN766, 1/4" BBB |
| Rope Diameter / Contruction | 12mm 3 Strand |

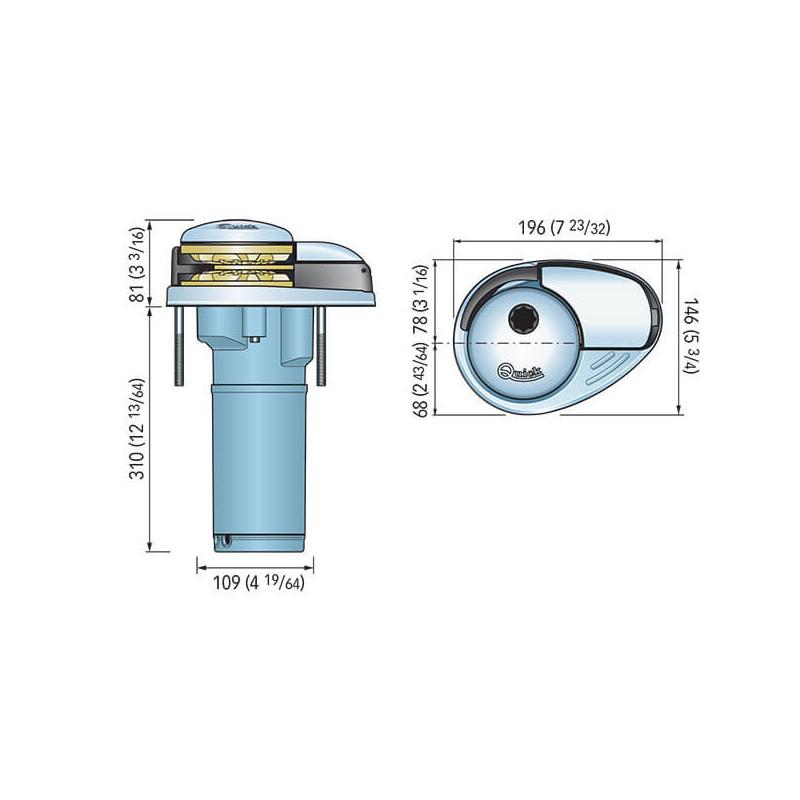

Quick Prince DP2L Vertical Windlass Dimensions - mm / (inches)
- Chain Size - 6mm
- Boat Length (Windlasses) - up to 20 feet
- Boat Length (Windlasses) - up to 25 feet
- Horizontal or Vertical - Vertical
