Octoplait Nylon Mooring Bridle
Octoplait Nylon Mooring Bridle
Octoplait Nylon Mooring Bridle - 12mm
Octoplait Nylon Mooring Bridle - 20mm

LIROS Octoplait Nylon article 01058

Available to purchase in set lengths

Produced to order, subject to splicing lead times

Spliced by the Jimmy Green Rigging Team

Designed to attach a towing line, para-anchor rode or yacht drogue warp

£76.50

More Information
Features
Accessories

LIROS Octoplait Nylon V Bridles are available to purchase in set lengths, spliced to order by the Jimmy Green Rigging Team

The Jimmy Green Rigging Team splice and finish Octoplait Nylon V Bridles in house from LIROS Octoplait Nylon article 01058

Jimmy Green V Bridles are produced to order in house and therefore subject to splicing order lead times.

LIROS Octoplait bridles are designed to attach a towing line, para anchor rode or yacht drogue warp

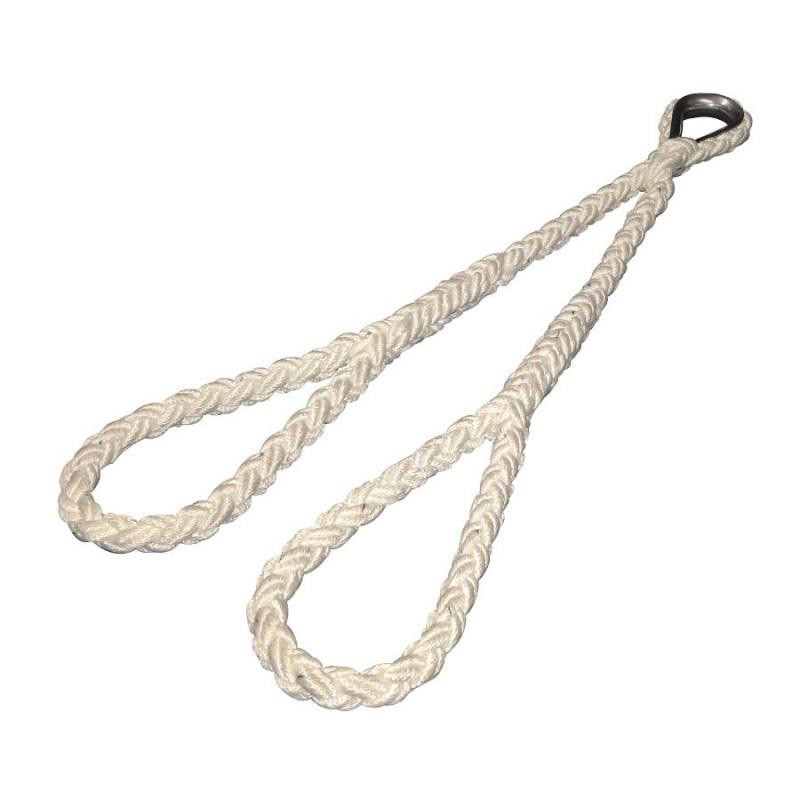

The bridle is made up from a single length of LIROS Octoplait White Nylon with a soft loop splice in each end and a stainless steel thimble spliced into the centre of the rope.

The rope is therefore continuous which is a far better solution than splicing 2 ropes together.
For this reason, a bridle is not advisable in 3 strand nylon

Bridles divide the load between two attachment points

By transferring the load to the leeward side of the vessel as it attempts to broach or yaw, the bridle dampens the effects of both actions.

The length of the bridle tails relates to the distance between the end loop bearing edge and the centre eye splice.

Rope diameter x Suggested Tail Length Rule of Thumb, Yacht Length Overall in metres Part Number
12mm x 2 metres up to 8 metres JGM09043
14mm x 3 metres 8-10 metres JGM09044
16mm x 4 metres 10-12 metres JGM09045
18mm x 5 metres 12-14 metres JGM09046
20mm x 6 metres 14-16 metres JGM09047
24mm x 8 metres 16-18 metres JGM09048

You can build your own specification online, selecting rope diameter, tail length and finish.

Mooring/Anchoring V Bridles

  • Purchase Type - Spliced Set Length
  • Rope Diameter - 6mm
  • Rope Diameter - 12mm
  • Rope Diameter - 14mm
  • Rope Diameter - 16mm
  • Rope Diameter - 18mm
  • Rope Diameter - 20mm
