LIROS 24mm Octoplait V shape Mooring Bridle
Build from the end of one tail through to the centre eye splice and repeat to the end of the second tail
Select matching rope and length to form a symmetrical V
Jimmy Green V shape Bridle spliced to order by the Jimmy Green Rigging Team
Octoplait, White LIROS article 01058
Octoplait Polyester, Black or Navy LIROS article 01049
Anchor chain snubbing, permanent mooring warp applications and for use with towing lines, para anchor rodes or yacht drogue warps.
Size guidelines vary for application:
GENERAL GUIDE FOR DETERMINING THE SIZE OF YOUR ANCHOR RODE
LIROS Octoplait White Nylon Article 01058 - 100% Nylon (Polyamide) manufactured by LIROS Ropes
8 strand construction (2 pairs left hand, 2 pairs right hand) gives a balanced performance and no twist under tension.
- Flakes like chain
- Spliceable to chain
- Anchorplait is the rope that won't cockle
- High strength and abrasion resistance
- UV stabilised
- Retains flexibility throughout working life
- > 20% working load stretch provides excellent shock absorption
LIROS Break Load: 10mm 2400kg ~ 12mm 3300kg ~ 14mm 4400kg ~ 16mm ~ 5600kg ~ 18mm 7000kg - 20mm 8140kg ~ 24mm 11800kg ~ 28mm 15000kg ~ 32mm 20000kg
LIROS Octoplait Polyester Article 01049 - 8 Strand, Balanced, Square Braid Construction, 100% Polyester - super pliable, spliceable to chain, Reliable load capacity and abrasion resilience combined with excellent constructional shock absorption >15% working load stretch
LIROS Break Load: 10mm 2000kg ~ 12mm 2400kg ~ 14mm 3800kg ~ 16mm ~ 4700kg ~ 18mm 5800kg - 20mm 7600kg ~ 24mm 11600kg
The Jimmy Green Rigging Sales Team are very happy to help you to build and order a bridle to meet your bespoke requirements.
Please take extra care when ordering because once a bespoke item has been started (cut) it can neither be cancelled or returned for a refund.
Follow these steps, building a > from the top to get an instant quote and complete the order yourself:
Select Option 1 - Make your choice of splice to attach to your cleats onboard
Select Option 2 - Pick your rope and enter the length of the first tail. This will be the length from bearing edge to bearing edge
Select Option 3 - Add an anti-chafe option, if required
Select Option 4 - Add a compensator option, if required
Select Option 5 - Select a centre eye splice
Select Option 6 - Pick the matching rope and enter the length of the second tail. This will be the length from bearing edge to bearing edge
Select Option 7 - Add a compensator option, if required
Select Option 8 - Add an anti-chafe option, if required
Select Option 9 - Make your choice of finish to attach to your cleats onboard
Ensure that you select matching rope for each tail and a matching finish for attaching to your cleats in order to create a symmetrical V
The mooring compensators will be fitted nearer the centre eye splice unless otherwise specified by email.
Any anti chafe can then be suitably positioned to protect the tails as they pass through the fairleads and on to the cleats.
If for any reason you would prefer an asymmetrical configuration with non matching splicing/whipping on the two tails and/or one tail longer than the other, please order as above and send an email confirming your desired specification with a sketch if possible.
e.g If your fairleads are not positioned the same port and starboard you may prefer a loop splice on the end of one tail for a fixed length and a longer second tail with a whipping in order to adjust the bridle to take the load equally.
Once you have made a selection in all the drop down boxes available, the website will generate:
- a picture version of what you have chosen
- an overall length
- a price including VAT and any current applicable discount
The website will accept a length to 3 decimal points. However, this is not practicable for mooring and anchoring bridles
For short strops and bridles, the Jimmy Green Rigging Team aim for a bearing edge to bearing edge measurement which is accurate to within + or - the diameter of the rope
All ropes stretch to some extent under load. Mooring and Anchoring ropes stretch more than most.
Please allow for stretch under load when determining your finished length
Check the item is designed as you wish. You can alter any of the 5 boxes and the website will update the picture and the price.
Check the quantity that you want to purchase and click the green Add to Basket button to put it in your shopping basket
Select Continue Shopping or Proceed to Checkout
To view a short summary of the items you have selected, hover over the pale green Basket icon in the green banner, top right of the webpage
To view a detailed description of the items you have selected, click on the pale green Basket icon in the green banner, top right of the webpage or hover over Basket and click on Checkout
The Jimmy Green Rigging Team Finished Length Process for V Bridles
- Measure out a length of rope, estimate and mark the central splicing point allowing for finishing both ends
- Splice the centre eye
- Secure the spliced centre eye to the bearing edge pin on the splicing bench
- Lay both tails out straight against the fixed tape measure
- Calculate and mark the turning point for splicing the end of each tail ---> equal lengths for each tail for a symmetricale V shape
- Estimate the extra length required to complete each splice and cut accordingly
- Complete one tail splice and check the finished length against your order
- Complete the second tail splice
- Check both tails are equal for a symmetrical V

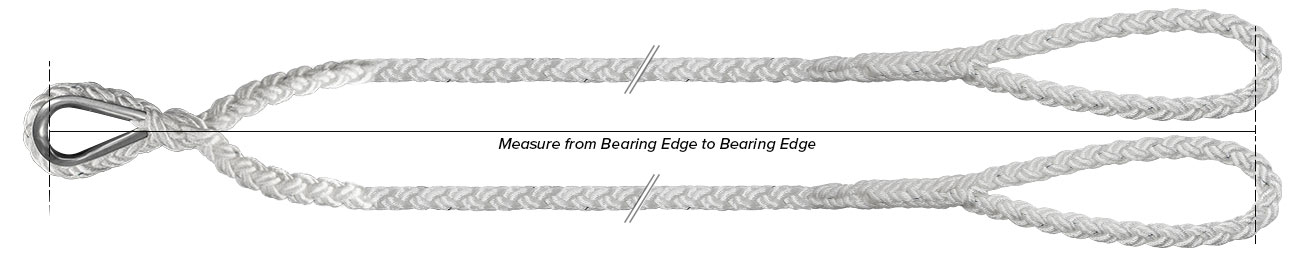

The finished length is measured from the bearing edge to the bearing edge = the inside face of a loop/thimble where e.g. a shackle pin would take the load and therefore NOT the overall outside length
The splicing price includes the extra rope required to make the splice and meet the overall finished length
The Jimmy Green Rigging Team undertake to check your rope meticulously during the production process to ensure that it is 100% First Quality
The Jimmy Green Despatch Team make a second thorough quality inspection of each item, including a careful check that it matches your order, before packing it into your parcel
- Purchase Type - Custom Build
- Rope Fibre - Polyester
- Rope Fibre - Nylon
- Rope Diameter - 24mm
- Boat Size (Permanent Strop) - 10-12 metres up to 9 tonnes
- Colour - Navy
- Colour - Black
- Colour - White
- Boat Size (Anchoring) - 18-20 metres up to 25 tonnes
