LIROS 14mm Anchorplait/Octoplait Y Bridle Single Part

LIROS 14mm Anchorplait/Octoplait Nylon Y Bridle - this is the Single Part - Complete this product and then build the interlocking V part to create a Y bridle.

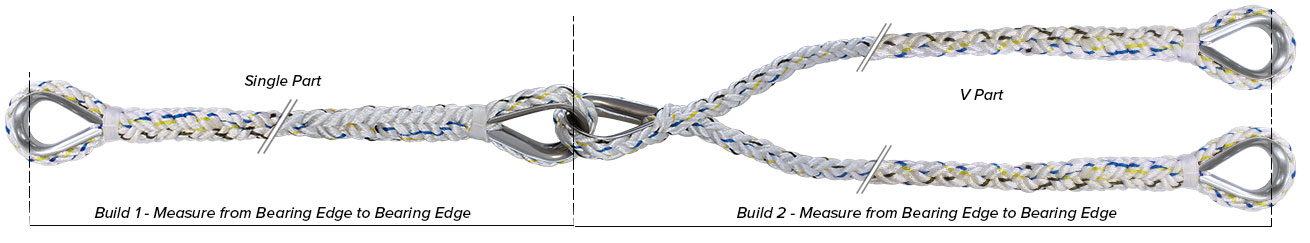

N.B. a Y bridle consists of two interlocking parts. This is the Single Part

Jimmy Green Y Bridle Single Part spliced to order by the Jimmy Green Rigging Team

Available in:
Octoplait, White LIROS article 01058
Anchorplait, White with distinctive easy splice markers LIROS article 01058JG
Octoplait Polyester, Black or Navy LIROS article 01049

Suitable for:
Anchor chain snubbing, permanent mooring warp applications and for use with towing lines, para anchor rodes or yacht drogue warps.

Size guidelines vary for application:
The specification for an anchoring or towing bridle would normally be comparable with the anchor rode.

GENERAL GUIDE FOR DETERMINING THE SIZE OF YOUR ANCHOR RODE

The specification for a permanent mooring may need to be appreciably stronger according to the application.

Mooring Warp Size Guide

LIROS Anchorplait White NylonArticle 01058JG - 100% Nylon (Polyamide) Octoplait construction, manufactured exclusively by LIROS Ropes for Jimmy Green Marine with the Jimmy Green designed Easy Splice Markers:

• 8 strand construction (2 pairs left hand, 2 pairs right hand) gives a balanced performance and no twist under tension.
• Flakes like chain
• Spliceable to chain
• Anchorplait is the rope that won't cockle
• High strength and abrasion resistance
• UV stabilised
• Retains flexibility throughout working life
• > 20% working load stretch provides excellent shock absorption

LIROS Break Load: 10mm 2400kg ~ 12mm 3300kg ~ 14mm 4400kg ~ 16mm ~ 5600kg ~ 18mm 7000kg - 20mm 8140kg ~ 24mm 11800kg ~ 28mm 15000kg ~ 32mm 20000kg

LIROS Octoplait Polyester Article 01049 - 8 Strand, Balanced, Square Braid Construction, 100% Polyester - super pliable, spliceable to chain, Reliable load capacity and abrasion resilience combined with excellent constructional shock absorption >15% working load stretch
LIROS Break Load: 10mm 2000kg ~ 12mm 2400kg ~ 14mm 3800kg ~ 16mm ~ 4700kg ~ 18mm 5800kg - 20mm 7600kg ~ 24mm 11600kg

The Jimmy Green Rigging Sales Team are very happy to help you to build and order a bridle to meet your bespoke requirements.

Please take extra care when ordering because once a bespoke item has been started (cut) it can neither be cancelled or returned for a refund.
