Marlow 28mm Multiplait Y Bridle Single Part

Marlow 28mm Multiplait 8 strand Nylon Y Bridle - this is the Single Part - Complete this product and then build the interlocking V part to create a Y bridle.

N.B. a Y bridle consists of two interlocking parts - This is the Single Part.

Jimmy Green Y Bridle Single Part spliced to order by the Jimmy Green Rigging Team.

Available in: Marlow 28mm Multiplait 8 strand White Nylon with a black tracer yarn.

Suitable for:
Anchor chain snubbing, permanent mooring warp applications and for use with towing lines, para anchor rodes or yacht drogue warps.

Size guidelines vary for application:
The specification for an anchoring or towing bridle would normally be comparable with the anchor rode:

GENERAL GUIDE FOR DETERMINING THE SIZE OF YOUR ANCHOR RODE

The specification for a permanent mooring may need to be appreciably stronger according to the application:

MOORING WARP SIZE GUIDE

Marlow Multiplait White Nylon - 100% Nylon (Polyamide) manufactured by Marlow Ropes for Jimmy Green Marine
Multiplait has the same rope construction as Anchorplait
Multiplait = Anchorplait without the easy splice marker yarns, in fact it has just the one black tracer yarn - the Marlow marker

• 8 strand construction (2 pairs left hand, 2 pairs right hand) gives a balanced performance and no twist under tension
• Flakes like chain
• Spliceable to chain
• Anchorplait/Octoplait/Multiplait 8 strand rope will not cockle
• High strength and abrasion resistance
• UV stabilised
• Retains flexibility throughout working life
• > 20% working load stretch provides excellent shock absorption

Marlow Ropes Break Load: Minimum 15189kg, Average 18550kg

The Jimmy Green Rigging Sales Team are very happy to help you to build and order a bridle to meet your bespoke requirements.

Please take extra care when ordering because once a bespoke item has been started (cut) it can neither be cancelled or returned for a refund.

Additional Information

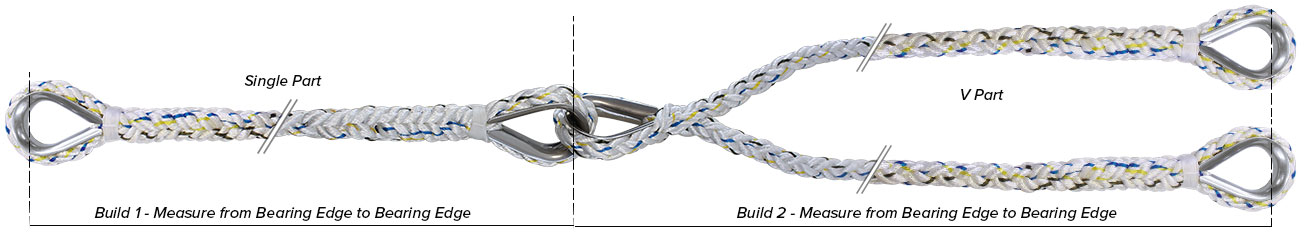

The finished length is measured from the bearing edge to the bearing edge = the inside face of a loop/thimble where e.g. a shackle pin would take the load and therefore NOT the overall outside length.
The splicing price includes the extra rope required to make the splice and meet the overall finished length.

Quality Control
The Jimmy Green Rigging Team undertake to check your rope meticulously during the production process to ensure that it is 100% First Quality.
The Jimmy Green Despatch Team make a second thorough quality inspection of each item, including a careful check that it matches your order, before packing it into your parcel.
