Bluewave Dyneema Rope Thread
PRB-BW-RP800406-A
Available for line diameters 4 to 10mm.
Unique internal bail for secure termination
Highly polished stainless steel 316
Simple design is easy to inspect and maintain.
More Information
Accessories

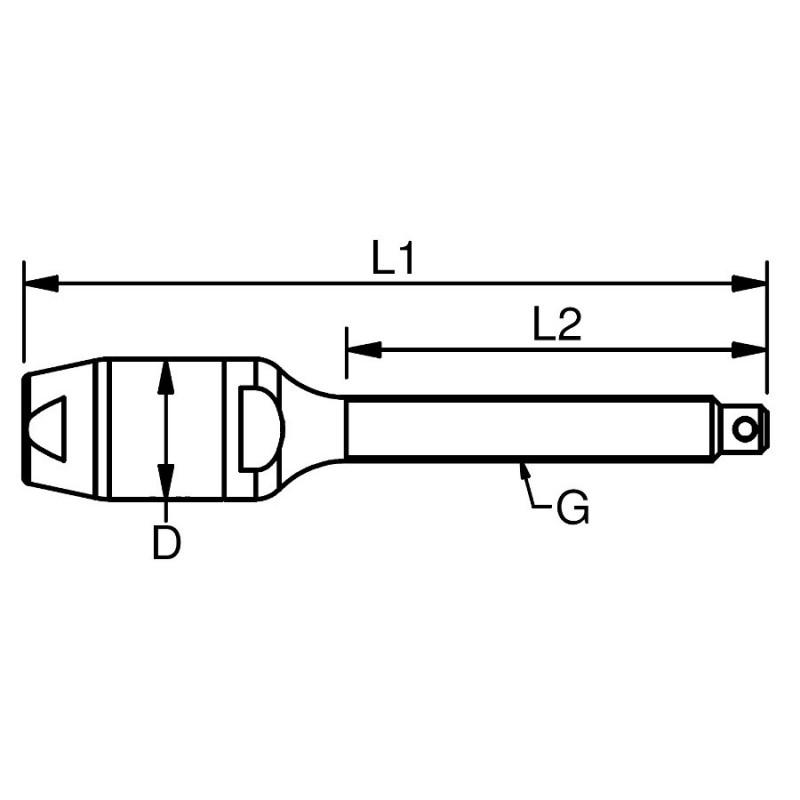

| Part | Rope Ø mm | G | D | L1 mm | L2 mm | Break Load kg |
|---|---|---|---|---|---|---|
| BW-RP800406-A | 4 | 1/4 | 16 | 87 | 48 | 1300 |
| BW-RP800408-A | 4 | 5/15 | 16 | 95 | 57 | 1900 |
| BW-RP800508-A | 5 | 5/16 | 21 | 106 | 57 | 2200 |
| BW-RP800510-A | 5 | 3/8 | 21 | 111 | 63 | 3200 |
| BW-RP800610-A | 6 | 3/8 | 25 | 122 | 63 | 2850 |
| BW-RP800611-A | 6 | 7/16 | 25 | 126 | 68 | 3850 |
| BW-RP800812-A | 8 | 1/2 | 39 | 163 | 80 | 5150 |
| BW-RP800816-A | 8 | 5/8 | 39 | 182 | 100 | 8250 |
| BW-RP801204-A | 10 | 3/4 | 45 | 216 | 120 | 12050 |
