LIROS 10mm Anchorplait Nylon Spliced to 6mm Chain

Reference:

Click on the boxes below to reveal your custom build options - Highlight your choice from the drop down menus - Detailed Instructions

The finish on the Bitter End (first box) is optional - the Rope to Chain Splice is a required field (third box)

£ 0.00 inc VAT

Total Weight: kg

Total Length: m

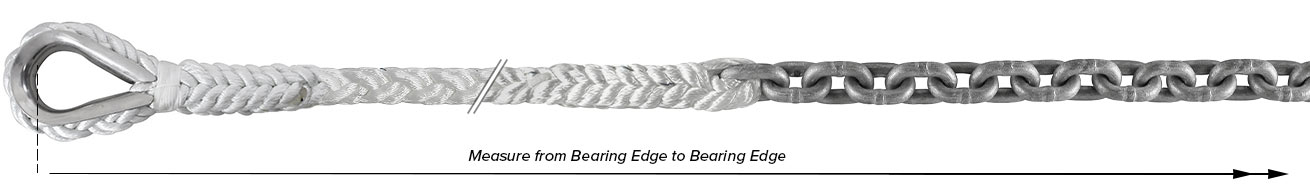

LIROS 10mm Anchorplait Nylon Spliced to 6mm DIN766 Grade 40 Calibrated Anchor Chain, prepared in house by the Jimmy Green Rigging Team.

Consult the information and size chart in our Anchoring System Assessment to establish the most suitable specification and length for your motor or sailing yacht, considering the application - Bower, Second or Kedge anchor - your intended cruising plans - and your reliance on anchoring.


The Bitter End
Consider how you are going to attach the warp on deck or in your chain locker.
This will depend on whether the strongpoint e.g. cleat, U bolt, eye plate will be used to take the full strain of the rode or only to prevent accidental loss overboard:

  • Finishing the rope yourself - no selection required, the rope will just be cut with a heat gun
  • Attaching to a mooring cleat - choose a Loop Splice
  • Attaching to a U Bolt or Eye Plate
    • with a knot - choose a whipping or heat sealing option
    • with a shackle - choose an eye splice with or without a thimble N.B. galvanised thimbles tend to be very large and cumbersome


Anchorplait White Nylon Article 01058JG is manufactured EXCLUSIVELY by LIROS Ropes with Easy Splice Markers for Jimmy Green Marine

  • Also available in plain white with LIROS tracer yarn - LIROS article 01058
  • 100% Nylon (Polyamide)
  • Octoplait, Square Braid construction
  • Balanced braiding - 8 strands, 2 pairs left hand, 2 pairs right hand
  • Flakes like chain
  • No twist under tension
  • Non kinking
  • Spliceable to chain
  • High breaking load capacity for dependable strength
  • Excellent durability and wear resistance
  • UV and abrasion resistant
  • Retains flexibility throughout working life
  • > 20% Working Load Stretch provides excellent shock absorption

Anchorplait is the rope that won't cockle

LIROS specify their manufacturer minimum break loads in Deka newtons = DaN
DaN = Deka newtons
1 Deka newton DaN actually = 1.01971621297793 (approximately 1.02) kg

01058 / 01058JG - 1000 =  2600 daN
01058 / 01058JG - 1200 =  3400 daN
01058 / 01058JG - 1400 =  4500 daN
01058 / 01058JG - 1600 =  5900 daN
01058 / 01058JG - 1800 =  7200 daN
01058 / 01058JG - 2000 =  8200 daN
01058 - 2400 = 11800daN

LIROS Break Load converted to Kg from DaN at 1:1.02 =
10mm 2652kg ~ 12mm 3468kg ~ 14mm 4590kg ~ 16mm ~ 6018kg ~ 18mm 7344kg - 20mm 8364kg ~ 24mm 12036kg


Jimmy Green Anchorplait to Chain Splicing Advisory

The rope to chain splice is required to complete your anchor rode

  • Anchorplait can be attached to chain using a long (11 link) splice or a shorter 1 link splice
  • The 11 link splice is not recommended by some windlass manufacturers for use on a rope/chain gypsy
  • The break load is slightly greater on the 1 link splice than the 11 link splice but the critical strands around the end link should be scrutinised regularly for signs of chafe.
  • The 11 link splice should also be regularly visually scanned for wear along all the interwoven strands including the whipped ends
  • This is a required field in the custom build process

MF Grade 40 chainMF Solid Zinc

Jimmy Green 6mm MF Grade 40 Hot Dip Galvanised Calibrated Anchor Chain, sourced exclusively from MF Catenificio Frigerio

MF Catenificio chain is manufactured, hot dip galvanised and proof tested in their modern research, test and production facility located near Lecco, Lake Como, Italy.

MF Calibrated Anchor Chain features enhanced Solid Zinc Galvanising treatment with greater micron depth and prolonged protection against corrosion.

For more information on MF calibrated anchor chain:

MF GRADE 40 CALIBRATED Enhanced Solid Zinc HOT DIP GALVANISED ANCHOR CHAIN



William Hackett Grade 40 chain

6mm DIN766 Grade 40 Calibrated Anchor Chain sourced from William Hackett Ltd, respected UK manufacturers and distributors of chain since 1892

For more information on 6mm William Hackett Grade 40 anchor chain:

William Hackett Grade 40 Hot Dip Galvanised Calibrated Anchor Chain

After saving your customised product, remember to add it to your basket.
