LIROS 10mm Octoplait Polyester Spliced to 6mm Chain

Reference:

LIROS 10mm Octoplait Polyester Spliced to 6mm DIN766 Calibrated Grade 40 Anchor Chain. Instant quote available.

£ 0.00 inc VAT

Total Weight: kg

Total Length: m

LIROS 10mm Octoplait Polyester Spliced to 6mm DIN766 Calibrated Grade 40 Anchor Chain

Suitable for boats up to 6 metres length overall or 0.5 tonne displacement (LIROS guide)

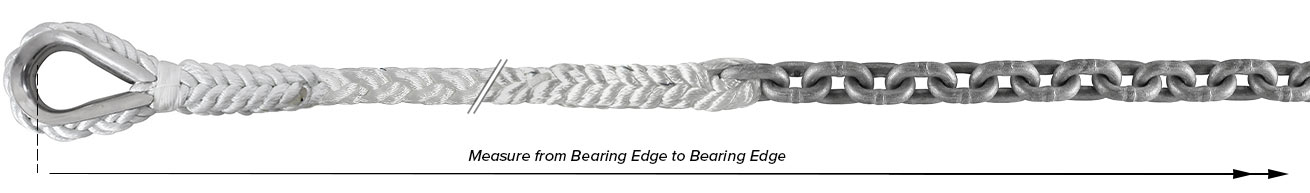

Octoplait can be attached to chain using a long (11 link) splice or a shorter 1 link splice
The 11 link splice is not recommended by some windlass manufacturers for use on a rope/chain gypsy
The break load is slightly greater on the 1 link splice than the 11 link splice but the critical strands around the end link should be scrutinised regularly for signs of chafe.
The 11 link splice should also be regularly visually scanned for wear along all the interwoven strands including the whipped ends

6mm Lofrans Grade 40 DIN766 calibrated hot dipped galvanised anchor chain
Pitch 18.5mm, outside width 20mm, inside width 8mm, weight 0.8kg per metre, minimum break load 24Kn = 2447kg

LIROS Octoplait Polyester Article 01047/01049
100% Polyester, square braid construction, super pliable, non kinking, balanced braiding, spliceable to chain, dependable strength, excellent UV durability and abrasion resilience

Plus Factors:
Balanced 8 strand construction (2 pairs left hand, 2 pairs right hand)
Flakes like chain.
Symmetrical structure prevents twist under tension
Octoplait will not cockle (unlay itself)
UV stable
Reliable load capacity and tough wear resistance.
Retains flexibility throughout working life.
> 15% Working Load Stretch provides good shock absorption.

LIROS Break Load: 10mm 2000kg ~ 12mm 2400kg ~ 14mm 3800kg ~ 16mm ~ 4700kg ~ 18mm 5800kg - 20mm 7600kg ~ 24mm 11600kg

Available in: White LIROS article 01047, Navy and Black article 01049

Simply use the drop down menus to build the item of your choice and get an instant quote.

After saving your customised product, remember to add it to your basket.
