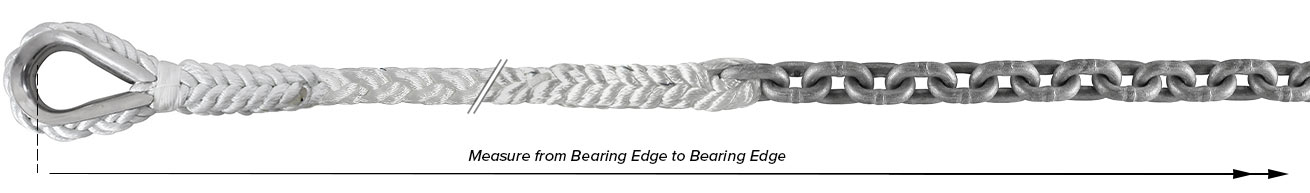

LIROS 12mm Octoplait Polyester Spliced to 8mm Chain

Click on the boxes below to reveal your custom build options - Highlight your choice from the drop down menus - DETAILED INSTRUCTIONS

The finish on the Bitter End (first box) is optional - the Rope to Chain Splice is a required field (third box)

More Information

LIROS Octoplait Polyester Spliced to Grade 40 Calibrated Anchor Chain, prepared in house by the Jimmy Green Rigging Team.

Consult the information and size chart in our ANCHORING SYSTEM ASSESSMENT to establish the most suitable specification and length for your motor or sailing yacht, considering the application - Bower, Second or Kedge anchor - your intended cruising plans - and your reliance on anchoring.

The Bitter End
Consider how you are going to attach the warp on deck or in your chain locker.
This will depend on whether the strongpoint e.g. cleat, U bolt, eye plate will be used to take the full strain of the rode or only to prevent accidental loss overboard:

  • Finishing the rope yourself - no selection required, the rope will just be cut with a heat gun
  • Attaching to a mooring cleat - choose a Loop Splice
  • Attaching to a U Bolt or Eye Plate
    • with a knot - choose a whipping or heat sealing option
    • with a shackle - choose an eye splice with or without a thimble N.B. galvanised thimbles tend to be very large and cumbersome

LIROS Octoplait Polyester Article 01047/01049 Facts, Features and Plus Factors

  • Available in LIROS Article: 01047 = White -Article 01049 = black or navy
  • 100% Polyester
  • Octoplait, Square Braid construction
  • Balanced braiding - 8 strands, 2 pairs left hand, 2 pairs right hand
  • Flakes like chain
  • Symmetrical structure prevents twist under tension
  • No twist under tension
  • Non kinking
  • Spliceable to chain
  • Octoplait will not cockle (unlay itself)
  • Superlative UV durability
  • Reliable load capacity and tough wear resistance
  • Retains flexibility throughout working life
  • Excellent abrasion performance
  • > 15% Working Load Stretch provides good shock absorption

Anchorplait/Octoplait is the rope that won't cockle

LIROS Break Load: 10mm 2000kg ~ 12mm 2400kg ~ 14mm 3800kg ~ 16mm ~ 4700kg ~ 18mm 5800kg - 20mm 7600kg ~ 24mm 11600kg

Jimmy Green Octoplait (8 Strand) to Chain Splicing Advisory

The rope to chain splice is required to complete your anchor rode

  • Octoplait can be attached to chain using a long (11 link) splice or a shorter 1 link splice
  • The 11 link splice is not recommended by some windlass manufacturers for use on a rope/chain gypsy
  • The break load is slightly greater on the 1 link splice than the 11 link splice but the critical strands around the end link should be scrutinised regularly for signs of chafe.
  • The 11 link splice should also be regularly visually scanned for wear along all the interwoven strands including the whipped ends
  • This is a required field in the custom build process

MF CatenificioMF Solid Zinc

Jimmy Green MF Grade 40 Hot Dip Galvanised Calibrated Anchor Chain is sourced exclusively from MF Catenificio Frigerio, Italy

MF Catenificio chain is manufactured, hot dip galvanised and proof tested in their modern research, test and production facility located near Lecco, Lake Como, Italy.

The proof load testing process ensures that each individual weld has been completed successfully.

MF Calibrated Anchor Chain features enhanced Solid Zinc Galvanising treatment with greater micron depth and prolonged protection against corrosion.

MF Calibrated Anchor Chain Specification
Chain Calibration Pitch MBL Weight
8mm DIN766 24mm 4079kg 1.4kg

MBL = Manufacturer Break Load
Weight = weight in kg per metre


Lofrans Chain

Grade 40 Hot Dip Galvanised Calibrated Anchor Chain from Lofrans, renowned worldwide for their range of quality windlasses.

Lofrans calibrated anchor chain is clearly stamped LFR at regular intervals as testimony to their belief in the quality of their chain.

Lofrans Calibrated Anchor Chain Specification
Chain Calibration Pitch MBL Weight
8mm DIN766 24.1mm 4384kg 1.4kg

MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on Lofrans calibrated anchor chain: LOFRANS GRADE 40 DIN766 CALIBRATED HOT DIP GALVANISED ANCHOR CHAIN

Titan Chain

Titan Grade 43 Calibrated Anchor Chain is manufactured, hot dip galvanised, hall-marked, proof-tested, engineered by CMP to specifications exceeding DIN766

Titan Marine Products are a brand of Canada Metal (Pacific), the manufacturers of the world renowned Rocna and Vulcan range of anchors. CMP specialise in the manufacture of World Class Marine Anchor Chain

Titan Calibrated Anchor Chain Specification
Chain Calibration Pitch MBL Weight
8mm DIN766 24mm 4400kg 1.4kg

MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on Titan calibrated anchor chain: TITAN GRADE 43 HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN

William Hackett stainless steel calibrated anchor chain, manufactured on automatic chain making machines from A316L to Grade 3

Jimmy Green G3 stainless steel chain specification

Service Load Safety Factor = 4:1
M.B.L. = Manufacturer Minimum Break Load

This chain is sourced in the UK from William Hackett Ltd, respected manufacturers and distributors of chain since 1892

  • Purchase Type - Custom Build
  • Rope Diameter - 12mm
  • Chain Size - 7mm
  • Boat Length (Anchoring) - 6-8 metres up to 2.5 tonnes
