Blue Wave Stainless Steel U Bolts
PRB-BW-340650
Blue Wave Rated Break Load
Complete with two backing plates, washers and nuts
The M12 version also has top nuts
AISI 316 Grade Stainless Steel
Select by Thread Diameter: M6, M8, M10, M12
More Information
Blue Wave Stainless Steel U Bolts are available in 6mm, 8mm, 10mm and 12mm shank diameter, with RH Metric thread.
U bolts are complete with two backing plates, washers and nuts.
N.B. BW-341280 - the M12 version also has top nuts

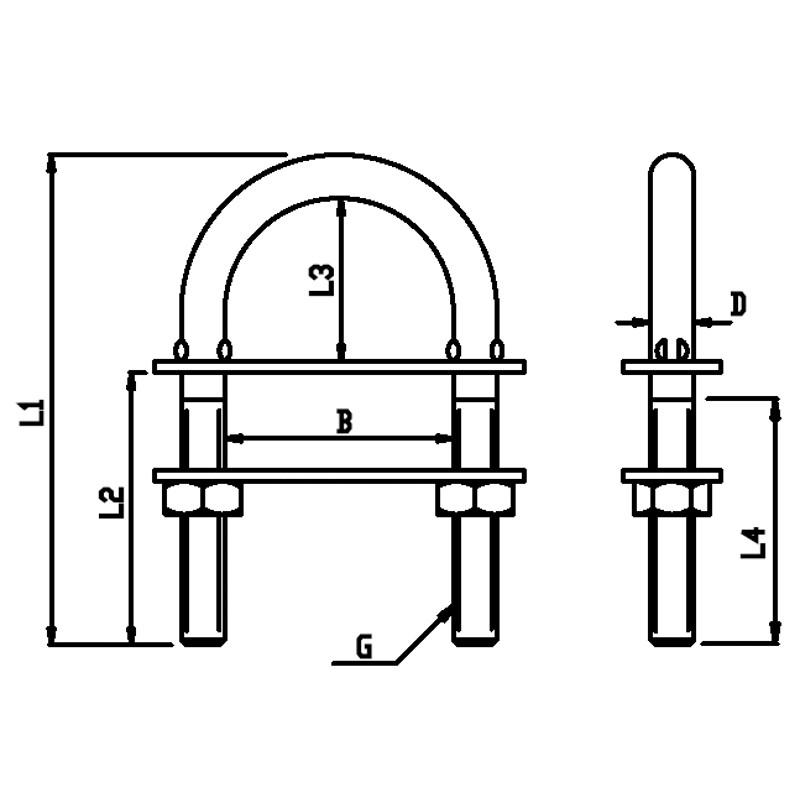

The dimensions are set out in the table below.
Please note that we list the options with the longest thread length - Blue Wave do offer shorter thread lengths in M6, M8 and M10.
BW-341280 is the only option in M12
| Blue Wave | Thread | L1 | L2 | L3 | L4 | B | D | MBL |
| BW-340650 | M6 | 84mm | 50mm | 26mm | 30mm | 27mm | 5.3mm | 1250kg |
| BW-340880 | M8 | 116mm | 80mm | 26mm | 45mm | 25mm | 7.1mm | 1750kg |
| BW-341010 | M10 | 150mm | 100mm | 40mm | 85mm | 30mm | 10mm | 3500kg |
| BW-341280 | M12 | 122mm | 80mm | 30mm | 85mm | 35mm | 10.8mm | 5100kg |
