Bluewave Stainless Steel Welded Thimbles
PRB-BW-119908
Stainless steel welded thimbles
Additional welded bar and ends of the thimbles are welded together
High polished stainless steel - AISI 316
More Information
Welded Bar Thimbles
A reinforced thimble with the addition of a welded bar, as well as the ends of the thimbles being welded together.
Manufactured by Bluewave from high polished AISI 316 stainless steel.
A range of sizes listed below.

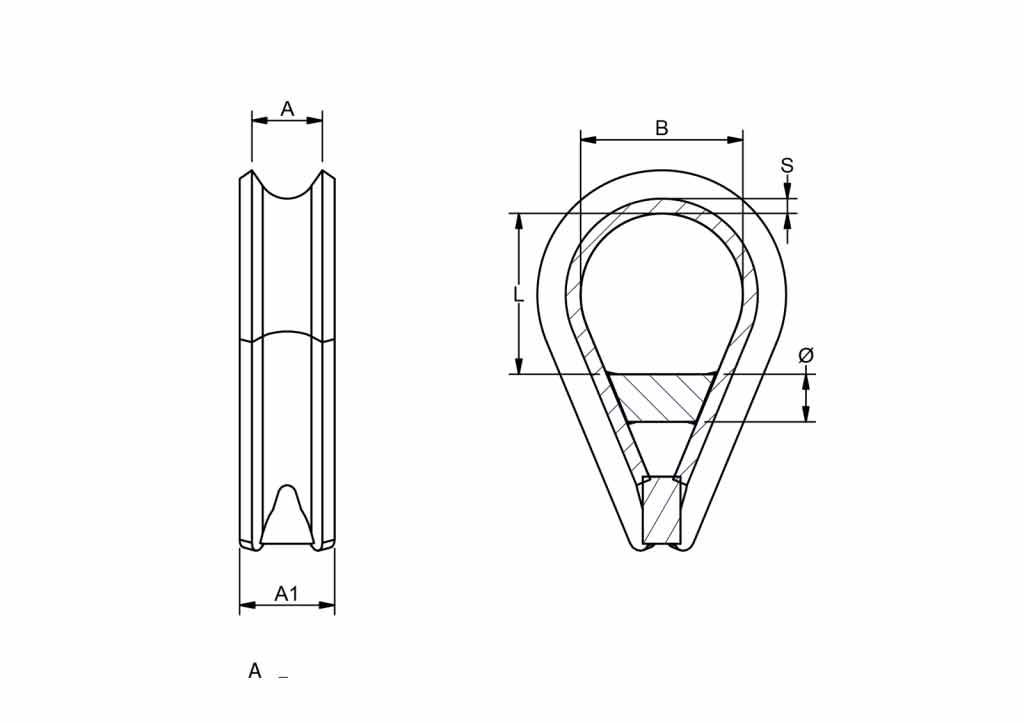

| Part Wire/Rope | Ø mm | A mm | B mm | L mm | Ø mm | S mm |
|---|---|---|---|---|---|---|
| BW-119908 | 8 | 9 | 22 | 22 | 6 | 2 |
| BW-119909 | 9 | 10 | 24 | 24 | 6 | 2 |
| BW-119910 | 10 | 11 | 27 | 27 | 8 | 3 |
| BW-119912 | 12 | 14 | 29 | 29 | 8 | 3 |
| BW-119914 | 14 | 16 | 32 | 32 | 10 | 3 |
| BW-119916 | 16 | 18 | 40 | 40 | 10 | 3 |
| BW-119918 | 18 | 20 | 45 | 45 | 12 | 4 |
| BW-119920 | 20 | 22 | 50 | 50 | 12 | 4 |
| BW-119922 | 22 | 24 | 56 | 56 | 16 | 5 |
| BW-119926 | 26 | 28 | 60 | 60 | 16 | 6 |
