Marlow 28mm Multiplait V shape Mooring Bridle

Reference:

Build from the end of one tail through to the centre eye splice and repeat to the end of the second tail

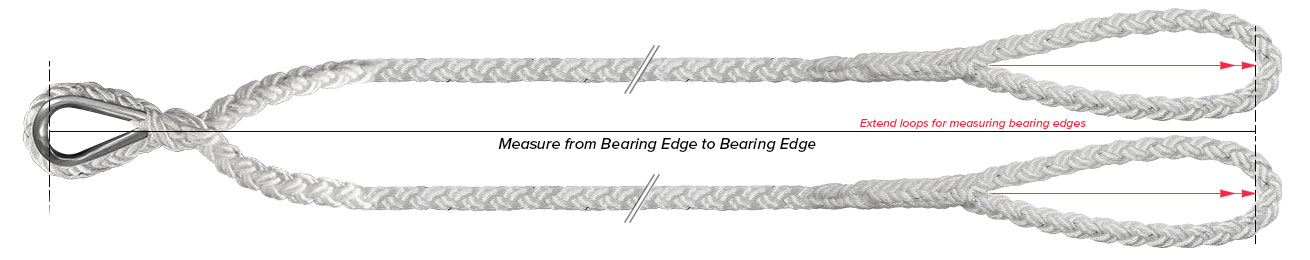

Select matching rope and length to form a symmetrical V  -  Custom Build Instructions with measurement illustrations

£ 0.00 inc VAT

Total Weight: kg

Total Length: m

Jimmy Green V shape Bridle spliced to order by the Jimmy Green Rigging Team

Available in: Marlow 28mm Multiplait 8 strand White Nylon with a black tracer yarn

Suitable for:
Anchor chain snubbing, permanent mooring warp applications and for use with towing lines, para anchor rodes or yacht drogue warps

Size guidelines vary for application:

Consult the GENERAL GUIDE FOR DETERMINING THE SIZE OF YOUR ANCHOR RODE
Anchor snubbing lines i.e. strops and bridles should generally be comparable to your bower anchor size.

Consult the Jimmy Green  MOORING STROP SIZE GUIDE with particular attention to the single or double point mooring configuration


Marlow Multiplait White Nylon - 100% Nylon (Polyamide) manufactured by Marlow Ropes for Jimmy Green Marine
Multiplait has the same rope construction as Anchorplait
Multiplait = Anchorplait without the easy splice marker yarns, in fact it has just the one black tracer yarn - the Marlow marker

  • 8 strand construction (2 pairs left hand, 2 pairs right hand) gives a balanced performance and no twist under tension.
  • Flakes like chain.
  • Spliceable to chain
  • Anchorplait/Octoplait/Multiplait 8 strand is the rope that won't cockle.
  • High strength and abrasion resistance.
  • UV stabilised
  • Retains flexibility throughout working life.
  • > 20% working load stretch provides excellent shock absorption

Marlow Ropes Break Load: Minimum 15189kg, Average 18550kg

The Jimmy Green Rigging Sales Team are very happy to help you to build and order a bridle to meet your bespoke requirements.

Please take extra care when ordering because once a bespoke item has been started (cut) it can neither be cancelled or returned for a refund.

After saving your customised product, remember to add it to your basket.
