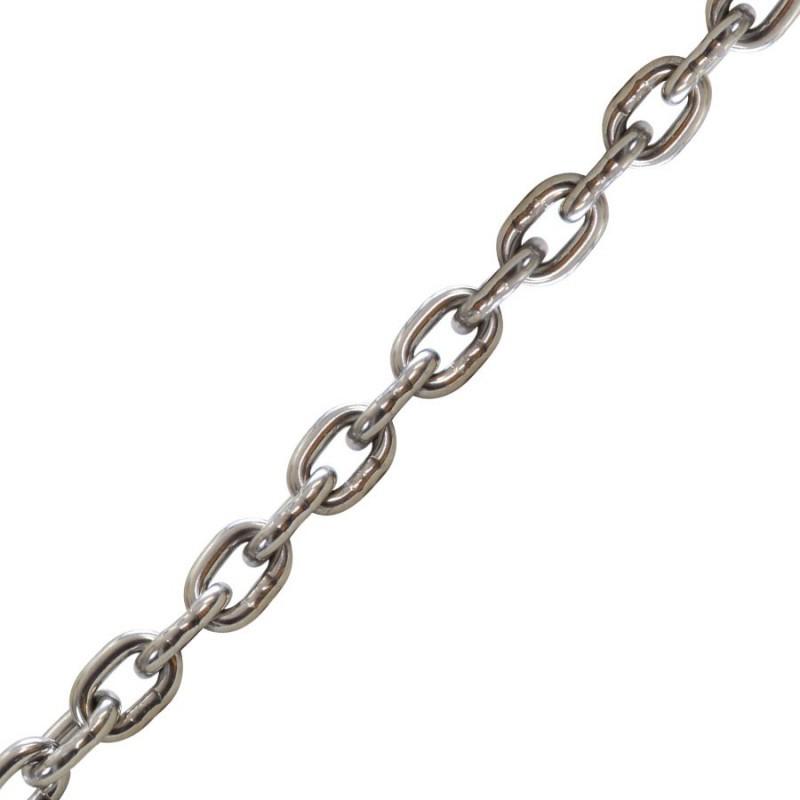

6mm DIN766 G3 AISI 316L Stainless Steel Calibrated Anchor Chain
WHA-SSCHAIN-6mmDIN766
G3 = Grade 3
AISI 316L Stainless Steel
Manufactured to DIN766
18.5mm Pitch x 6mm Diameter
More Information
Features
Accessories
Manufactured on automatic chain making machines from A316L to Grade 3.
Calibrated during manufacture, then proof load tested at the end of the process.
All chain is embossed at every 20th link or 1m intervals with a four digit batch number for purposes of traceability.
Suitable for use in a salt water environment.
Finish: solution annealed for additional corrosion resistance and tumble polished.
| Part Code | Chain | Calibration | A | B | C | Service Load | MBL | Weight Per Metre |
|---|---|---|---|---|---|---|---|---|
| IS1.060.5 | 6mm | DIN766 | 6mm | 18mm | 9mm | 450kg | 1800kg | 0.75kg |
| IS1.080.5 | 8mm | DIN766 | 8mm | 24mm | 12mm | 800kg | 3200kg | 1.4kg |
| IS1.100.5 | 10mm | ISO4565 | 10mm | 30mm | 14mm | 1250kg | 5000kg | 2.2kg |
| IS1.100.D766 | 10mm | DIN766 | 10mm | 28mm | 14mm | 1250kg | 5000kg | 2.3kg |
| IS1.120.5 | 12mm | DIN766 | 12mm | 36mm | 18mm | 1800kg | 7200kg | 3.2kg |
Service Load Safety Factor = 4:1
MBL = Manufacturer Minimum Break Load
This chain is sourced in the UK from William Hackett Ltd, respected manufacturers and distributors of chain since 1892.
- Purchase Type - Per metre
- Chain Size - 6mm
- Chain Finish - Stainless Steel
- Boat Size (Anchoring) - 5-6 metres up to 1 tonne
- Boat Size (Anchoring) - Up to 5 metres or 0.6 tonnes
