LIROS 14mm Anchorplait Nylon Spliced to 8mm Chain

Reference:

Click on the boxes below to reveal your custom build options - Highlight your choice from the drop down menus - DETAILED INSTRUCTIONS
The finish on the Bitter End (first box) is optional - the Rope to Chain Splice is a required field (third box)

£ 0.00 inc VAT

Total Weight: kg

Total Length: m

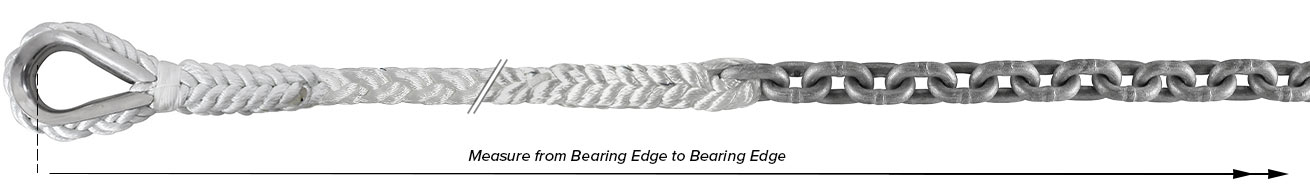

LIROS 14mm Anchorplait Nylon Spliced to 8mm DIN766 Grade 40 Calibrated Anchor Chain, prepared in house by the Jimmy Green Rigging Team.

Consult the information and size chart in our ANCHORING SYSTEM ASSESSMENT  to establish the most suitable specification and length for your motor or sailing yacht, considering the application - Bower, Second or Kedge anchor - your intended cruising plans - and your reliance on anchoring.



The Bitter End
Consider how you are going to attach the warp on deck or in your chain locker.
This will depend on whether the strongpoint e.g. cleat, U bolt, eye plate will be used to take the full strain of the rode or only to prevent accidental loss overboard:

  • Finishing the rope yourself - no selection required, the rope will just be cut with a heat gun
  • Attaching to a mooring cleat - choose a Loop Splice
  • Attaching to a U Bolt or Eye Plate
    • with a knot - choose a whipping or heat sealing option
    • with a shackle - choose an eye splice with or without a thimble N.B. galvanised thimbles tend to be very large and cumbersome





Anchorplait White Nylon Article 01058JG is manufactured EXCLUSIVELY by LIROS Ropes with Easy Splice Markers for Jimmy Green Marine

  • Also available in plain white with LIROS tracer yarn - LIROS article 01058
  • 100% Nylon (Polyamide)
  • Octoplait, Square Braid construction
  • Balanced braiding - 8 strands, 2 pairs left hand, 2 pairs right hand
  • Flakes like chain
  • No twist under tension
  • Non kinking
  • Spliceable to chain
  • High breaking load capacity for dependable strength
  • Excellent durability and wear resistance
  • UV and abrasion resistant
  • Retains flexibility throughout working life
  • > 20% Working Load Stretch provides excellent shock absorption

Anchorplait is the rope that won't cockle

LIROS Break Load: 10mm 2400kg ~ 12mm 3300kg ~ 14mm 4400kg ~ 16mm ~ 5600kg ~ 18mm 7000kg - 20mm 8140kg ~ 24mm 11800kg ~ 28mm 15000kg ~ 32mm 20000kg





Jimmy Green Anchorplait to Chain Splicing Advisory

The rope to chain splice is required to complete your anchor rode

  • Anchorplait can be attached to chain using a long (11 link) splice or a shorter 1 link splice
  • The 11 link splice is not recommended by some windlass manufacturers for use on a rope/chain gypsy
  • The break load is slightly greater on the 1 link splice than the 11 link splice but the critical strands around the end link should be scrutinised regularly for signs of chafe.
  • The 11 link splice should also be regularly visually scanned for wear along all the interwoven strands including the whipped ends



MF Catenificio

Jimmy Green MF Grade 40 Hot Dip Galvanised Calibrated Anchor Chain is sourced exclusively from MF Catenificio Frigerio, Italy

MF Catenificio chain is manufactured, hot dip galvanised and proof tested in their modern research, test and production facility located near Lecco, Lake Como, Italy.

The proof load testing process ensures that each individual weld has been completed successfully.

MF Calibrated Anchor Chain features enhanced Solid Zinc Galvanising treatment with greater micron depth and prolonged protection against corrosion.

MF Calibrated Anchor Chain Specification
ChainCalibrationPitchMBLWeight
8mmDIN76624mm4079kg1.4kg

MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on MF Chain:

MF GRADE 40 SOLID ZINC HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN




Lofrans Chain
Grade 40 Hot Dip Galvanised Calibrated Anchor Chain from Lofrans, renowned worldwide for their range of quality windlasses.

Lofrans calibrated anchor chain is clearly stamped LFR at regular intervals as testimony to their belief in the quality of their chain.

Lofrans Calibrated Anchor Chain Specification
ChainCalibrationPitchMBLWeight
8mmDIN76624.1mm4384kg1.4kg

MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on Lofrans calibrated anchor chain:

LOFRANS GRADE 40 DIN766 CALIBRATED HOT DIP GALVANISED ANCHOR CHAIN




Titan Grade 43 Calibrated Anchor Chain is manufactured, hot dip galvanised, hall-marked, proof tested and engineered by CMP to specifications exceeding DIN766

Titan Chain Titan Marine Products are a brand of Canada Metal (Pacific), the manufacturers of the world renowned Rocna and Vulcan range of anchors. CMP specialise in the manufacture of World Class Marine Anchor Chain

Titan Calibrated Anchor Chain Specification
ChainCalibrationPitchMBLWeight
8mmDIN76624mm4400kg1.4kg
MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on Titan calibrated anchor chain:

TITAN GRADE 43 HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN





William Hackett stainless steel calibrated anchor chain, manufactured on automatic chain making machines from A316L to Grade 3

Jimmy Green G3 stainless steel chain specification

Service Load Safety Factor = 4:1
M.B.L. = Manufacturer Minimum Break Load

This chain is sourced in the UK from William Hackett Ltd, respected manufacturers and distributors of chain since 1892



After saving your customised product, remember to add it to your basket.
