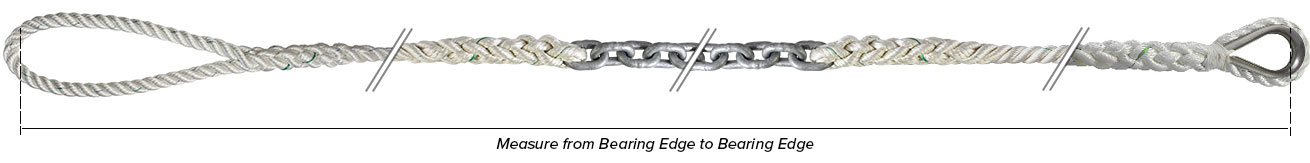

12mm Chain with 24mm 3 Strand Tails - Mooring Bridle


12mm Galvanised or Stainless Steel Anchor Chain centre section with LIROS 24mm 3 strand nylon tails spliced to order.

Add ANTI-CHAFE TUBE WEBBING to your basket and request the Rigging Team to sleeve it on to the chain.

£ 0.00 inc VAT

Total Weight: kg

Total Length: m

12mm Galvanised or Stainless Steel Chain centre section with LIROS 24mm 3 strand tails spliced to order
Use for mooring on visitor piling and permanent buoys
Select a chain and warp combination at least as big as your bower anchor system (does not take account of local variation in conditions and recommendations)

Ideal for mooring onto the steel ring on e.g.
1. a piling mooring
2. the top of a mooring buoy

Chain section provides long lasting chafe protection on the ring
Nylon provides excellent stretch and shock absorption
Choose the loop splice option for a quick and easy fixed length mooring bridle
Select the whipping option for an adjustable length solution
Add anti chafe measures and mooring compensators

Secure one end to your main cleat.
Pass the other end through the ring and back to the main cleat.
Make sure you position the chain so that it will take the load on the ring in order to save your warp from chafe

Maggi 12mm ISO AQUA4 Break load = 9200kg

LIROS 3 Strand Nylon Article 00110
Available in White and Navy
Manufactured from 100% high tenacity heat set Nylon (Polyamide) to DIN EN ISO 1140 standard (previously DIN EN 696, DIN 83330)
Thermofixed twisted lay construction
Dependable high strength
Excellent durability, wear and abrasion resistance.
UV stabilised.
> 20% working load stretch provides excellent shock absorption
Excellent protection against snatch loads
LIROS Break Load: 8mm 1440kg ~ 10mm 2400kg ~ 12mm 3300kg ~ 14mm 4400kg ~ 16mm ~ 5600kg ~ 18mm 7000kg - 20mm 8140kg ~ 24mm 11800kg ~ 30mm 17400kg

LIROS 3 Strand Polyester Article 00111/01110 - manufactured to DIN EN ISO 1141 standard (previously DIN EN 697, DIN 83331)
Available in Black, Navy and White
Heat Set Twisted Lay Construction
Dependable Strength
Excellent Durability - wear and abrasion resistant
Superb UV stability
Shock absorbing Elongation under load >15% working load stretch
LIROS Break Load: 10mm 2000kg ~ 12mm 2600kg ~ 14mm 3600kg ~ 16mm ~ 5000kg ~ 18mm 6000kg - 20mm 7000kg ~ 24mm 10500kg ~ 30mm 14800kg

Simply use the drop down menus to build the item of your choice and get an instant quote.

After saving your customised product, remember to add it to your basket.
