Bluewave Spare Swageless Cone
PRB-BW-C04-1X19
Spare swageless cone for Blue Wave swageless terminals.
All Blue Wave Swageless Terminals can be reused if the inner cone is replaced with a new one.
Highly polished stainless steel (AISI 316).
More Information
The SCT-terminal is designed for use on 1x19 wire construction as well as compacted and Dyform wires.

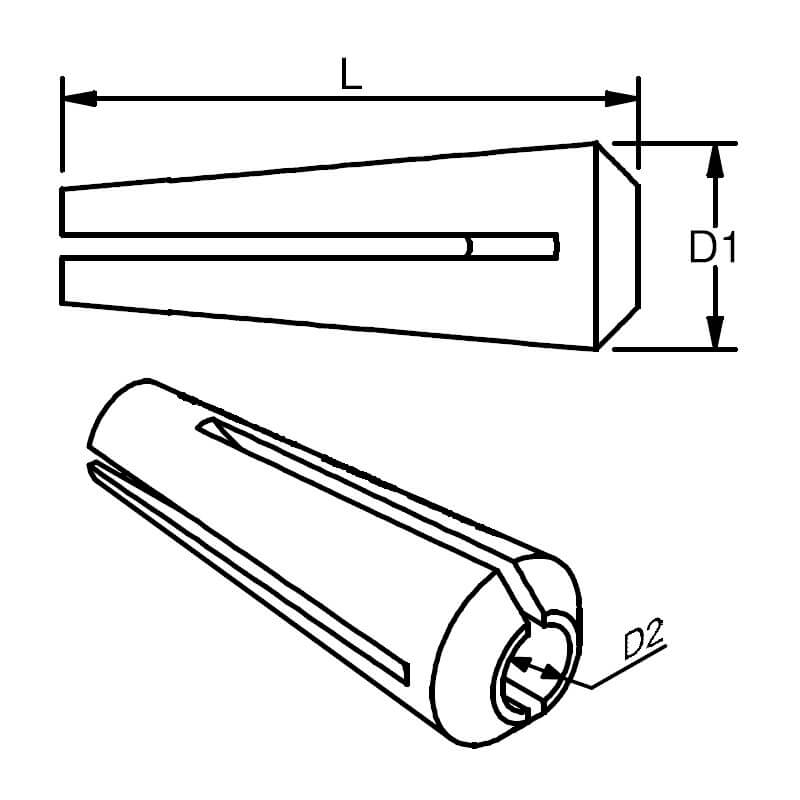

| Part | Wire Type | WireØ mm |
D1 mm |
D2 mm |
L mm |
|---|---|---|---|---|---|
| BW-C04-1X19 | 1x19 Wire | 4 | 5.6 | 2.5 | 14.5 |
| BW-C04-C1X7 | 1x7 Dyform/Compact | 4 | 4.65 | 2.05 | 13.9 |
| BW-C05-1X19 | 1x19 Wire | 5 | 6.5 | 3.2 | 15.7 |
| BW-C05-C1X19 | 1x19 Dyform/Compact | 5 | 6.15 | 3.15 | 13.9 |
| BW-C06-1X19 | 1x19 Wire | 6 | 8.5 | 3.9 | 22.4 |
| BW-C06-C1X19 | 1x19 Dyform/Compact | 6 | 8.05 | 3.6 | 21.4 |
| BW-C07-1X19 | 1x19 Wire | 7 | 9.4 | 4.6 | 23.5 |
| BW-C07-C1X19 | 1x19 Dyform/Compact | 7 | 8.8 | 4.15 | 22.6 |
| BW-C08-1X19 | 1x19 Wire | 8 | 10.9 | 5 | 30.3 |
| BW-C08-C1X19 | 1x19 Dyform/Compact | 8 | 10 | 4.75 | 26.2 |
| BW-C10-1X19 | 1x19 Wire | 10 | 13 | 6.4 | 34.5 |
| BW-C10-C1X19 | 1x19 Dyform/Compact | 10 | 12.1 | 6.1 | 30.8 |
| BW-C12-1X19 | 1x19 Wire | 12 | 17 | 7.9 | 47.6 |
| BW-C12-C1X19 | 1x19 Dyform/Compact | 12 | 15.8 | 7.4 | 43.2 |
| BW-C14-1X19 | 1x19 Wire | 14 | 18.7 | 8.9 | 50.8 |
| BW-C14-C1X19 | 1x19 Dyform/Compact | 14 | 17.5 | 8.5 | 45.8 |
| BW-C14-C1X36 | 1x36 Compact | 14 | 19.1 | 10.5 | 43.3 |
| BW-C16-1X19 | 1x19 Wire | 16 | 21.8 | 10.2 | 59.2 |
| BW-C16-C1X19 | 1x19 Dyform/Compact | 16 | 21.7 | 11.9 | 48 |
| BW-C16-C1X36 | 1x36 Compact | 16 | 22.4 | 12 | 51.7 |
| BW-C19-1X19 | 1x19 Wire | 19 | 25 | 11.9 | 68.5 |
| BW-C22-1X19 | 1x19 Wire | 22 | 28.5 | 13.9 | 77.8 |
| BW-C26-1X19 | 1x19 Wire | 26 | 34 | 15.9 | 93.8 |
