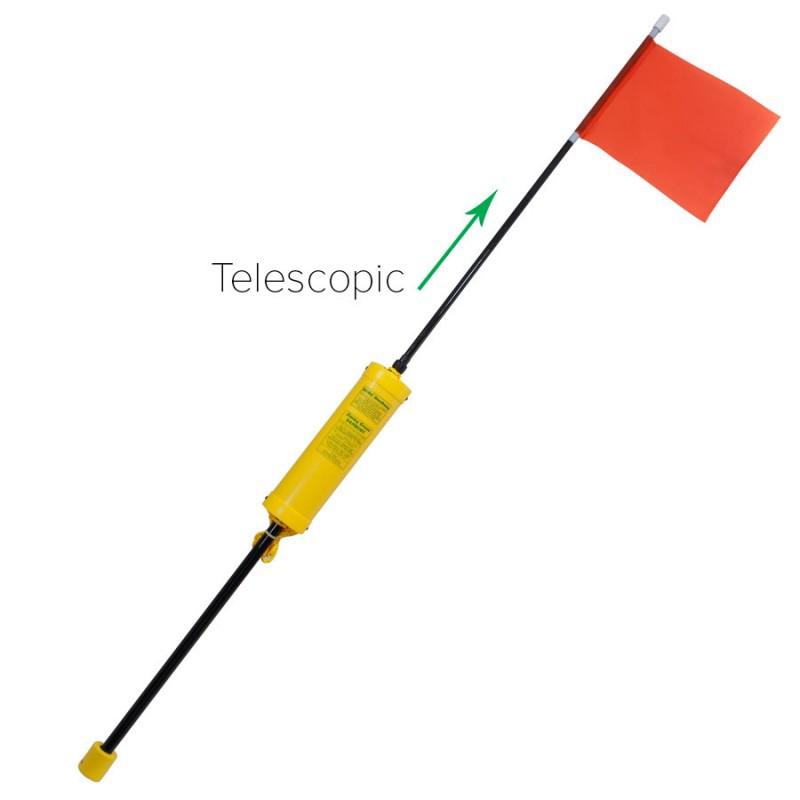

Jimmy Green 3-Part Telescopic Offshore Danbuoy

The Jimmy Green Telescopic Offshore Danbuoy is produced in-house from three lightweight yet robust, tapered GRP tubes, a cylindrical encapsulated float, a plastic-dipped lead weight and a lightweight, high-visibility flag.

The Jimmy Green Offshore Danbuoy can be fitted with a Jimmy Green/ACR Automatic Danbuoy Light.

The Jimmy Green adapted automatic light with a connector is included in the box when selected.

Please consult and follow the 3 PIECE OFFSHORE DANBUOY INSTRUCTIONS

These instructions include how to fit the light to the top of the danbuoy

The Jimmy Green Telescopic Offshore Danbuoy: Facts, Features and Plus Factors

• Plastic-coated lead weight providing excellent counterbalance, preventing the danbuoy from being blown flat
• Rubber boot to protect the deck
• Modular float for easy repair and replacement in the event of UV degradation
• 3 metres of LIROS 16 plait Hollowbraid multifilament polypropylene floating line for attaching to e.g. a lifebuoy
• Easily extended telescopic rods, three extensions make it compact for long-term storage
• High visibility orange flag, made from lightweight ripstop nylon, approximately 2 metres above sea level
• 25mm Retro-reflective tape above and below the flag
• Sturdy tip for fitting ACR light, please follow instructions

RORC Requirements Advisory
The Jimmy Green Offshore Danbuoy can comply with RORC requirements if it is:

• fully extended with flag deployed
• fitted with a working automatic fixed light
• attached via a three metre floating rope to a lifebuoy complete with retroreflective tape, drogue and whistle

Jimmy Green 3-Part Telescopic Danbuoy Extension and Stowage

Extend each section with a firm pull - the tapered telescopic parts will then have enough friction to stay up indefinitely.

Collapsing requires holding the top section so the boot is off the ground and giving it a short, sharp knock.

The flag fits inside the middle tube for protection from the elements while stowed.

This is achieved by rolling the flag on the tube and securing it with, for example, sellotape, and then carefully collapsing the top two pieces into the bottom section.

N.B. Collapse the top tapered section first. Otherwise, it is difficult to stow the flag without any unnecessary creasing.

Jimmy Green 3-Part Telescopic Danbuoy Dimensions:

• Stowed Length 1.2 metres
• Extended Length overall 3.25 metres
• 3 PIECE OFFSHORE DANBUOY DIAGRAM AND DIMENSIONS

Jimmy Green Danbuoy Advisory

A danbuoy is typically the first item deployed in the event of a man-overboard incident.

Therefore, it should be mounted aft, extended and ready, located for quick deployment.

Danbuoy Accessories are available for:

1. Preventing the flag from being blown out
2. Protecting the float against UV degradation
3. Locating the danbuoy to e.g. stanchion, pushpit

Danbuoy Refurbishment Kits are also available.

If you require any additional assistance with selecting a new danbuoy, installing your danbuoy, or refurbishing your existing one, please contact us on 01297 20744.
