7mm Chain with 12mm Anchorplait Tails - Mooring Bridle

Click on the boxes below to reveal your custom build options - Highlight your choice from the drop down menus Detailed instructions

Add ANTI-CHAFE TUBE WEBBING to your basket and request the Rigging Team to sleeve it on to the chain.

More Information

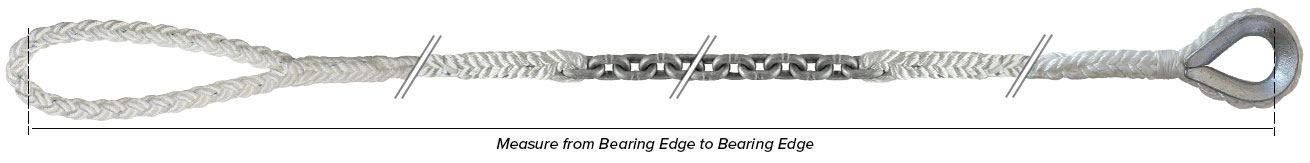

Mooring Lines spliced into either end of a short length of chain can be a real asset for temporary, overnight or permanent mooring arrangements.

The Jimmy Green Team call this arrangement a Mooring Strop with Chain Centre Section

Also known as Rope/Chain/Rope Bridles, the concept is ideal for securing your boat to a fixed pile or mooring buoy through a metal ring.

Set your lengths so that the chain centre section and not the rope comes into contact with the rusty metal, saving the warps from the otherwise ineviatble excessive abrasion.

Webbing can be sleeved over the chain to soften the harsh contact of metal on metal. Add the appropriate webbing to your basket seaparately and put a note in the 'Name' box at the bottom of the custom build process to request that the webbing is sleeved onto the chain.

Consult the information in our Rope/Chain/Bridle Size Guide to establish the most suitable specification for your motor or sailing yacht, considering the application.

Rope/Chain/Rope Bridles Facts, Features and Plus Factors:

  • Spliced and finished in house to your specification by the Jimmy Green Rigging Team
  • Ideal for mooring onto unsympathetic steel rings - piling mooring, the top of a mooring buoy
  • Chain section provides long lasting chafe protection on the ring
  • Both Nylon and Polyester provide excellent stretch and shock absorption
  • Choose the loop splice option for a quick and easy fixed length mooring bridle
  • Select the whipping option for an adjustable length solution
  • Add anti chafe measures and mooring compensators

Rope/Chain/Rope Bridle Concept in practice:

  • Secure one end to your main cleat.
  • Pass the other end through the ring and back to the main cleat.
  • Make sure you position the chain so that it will take the load on the ring in order to save your warp from chafe

Rope/Chain/Rope Bridle Component Parts:

LIROS Anchorplait White Nylon Article 01058JG Facts, Features and Plus Factors:

  • 100% Nylon (Polyamide)
  • Available in:
    • Octoplait, White LIROS article 01058
    • Anchorplait, White with exclusive, distinctive easy splice markers LIROS article 01058JG
  • 8 strand octoplait construction (2 pairs left hand, 2 pairs right hand) gives a balanced performance and no twist under tension
  • Flakes like chain
  • Anchorplait/Octoplait is the rope that won't cockle
  • High strength and abrasion resistance
  • UV stabilised
  • Retains flexibility throughout working life
  • > 20% working load stretch provides excellent shock absorption
LIROS Break Load:
10mm 12mm 14mm 16mm 18mm 20mm 24mm 28mm 32mm
2400kg 3300kg 4400kg 5600kg 7000kg 8140kg 11800kg 15000kg 20000kg

LIROS Octoplait Polyester Article 01049 Facts, Features and Plus Factors:

  • Manufactured from 100% polyester
  • Available in Navy and Black
  • 8 strand balanced square braid construction (2 pairs left hand, 2 pairs right hand)
  • Symmetrical manufacture delivers no twist under tension
  • Flakes like chain
  • LIROS Octoplait will not cockle
  • Smooth and comfortable to handle
  • Good strength and abrasion resistance
  • Retains flexibility throughout working life
  • > 15% working load stretch provides excellent shock absorption
LIROS Break Load:
10mm 12mm 14mm 16mm 18mm 20mm 24mm
2000kg 2400kg 3800kg 4700kg 5800kg 7600kg 11600kg

The Professional Finish applied by the Jimmy Green Rigging Team including reassuringly secure rope to chain splicing.

MF CatenificioMF Solid Zinc

Jimmy Green MF Grade 40 Hot Dip Galvanised Calibrated Anchor Chain is sourced exclusively from MF Catenificio Frigerio, Italy

MF Catenificio chain is manufactured, hot dip galvanised and proof tested in their modern research, test and production facility located near Lecco, Lake Como, Italy.

The proof load testing process ensures that each individual weld has been completed successfully.

MF Calibrated Anchor Chain features enhanced Solid Zinc Galvanising treatment with greater micron depth and prolonged protection against corrosion.

MF Calibrated Anchor Chain Specification
Chain Calibration Pitch MBL Weight
7mm DIN766 22mm 2549kg 1.1kg

MBL = Manufacturer Break Load
Weight = approximate weight in kg per metre


  • Purchase Type - Custom Build
  • Rope Fibre - Nylon
  • Rope Diameter - 14mm
  • Boat Length (Rope/Chain/Rope Bridles) - 5-6 metres up to 1 tonne
