10mm Chain with 16mm Anchorplait Tails - Mooring Bridle

Mooring Lines spliced into either end of a short length of chain can be a real asset for temporary, overnight or permanent mooring arrangements.

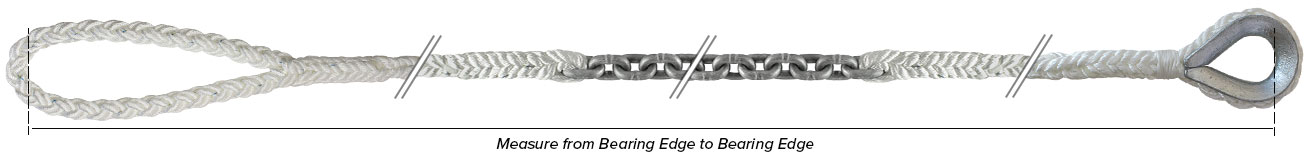

The Jimmy Green Team call this arrangement a Mooring Strop with Chain Centre Section.

Also known as Rope/Chain/Rope Bridles, the concept is ideal for securing your boat to a fixed pile or mooring buoy through a metal ring.

Set your lengths so that the chain centre section and not the rope comes into contact with the rusty metal, saving the warps from the otherwise ineviatble excessive abrasion.

Webbing can be sleeved over the chain to soften the harsh contact of metal on metal.
Add the appropriate webbing to your basket seaparately and put a note in the 'Name' box at the bottom of the custom build process to request that the webbing is sleeved onto the chain.

Consult the information in our ROPE / CHAIN / BRIDLE SIZE GUIDE to establish the most suitable specification for your motor or sailing yacht, considering the application

Rope/Chain/Rope Bridles Facts, Features and Plus Factors:

• Spliced and finished in house to your specification by the Jimmy Green Rigging Team
• Ideal for mooring onto unsympathetic steel rings - piling mooring, the top of a mooring buoy
• Chain section provides long lasting chafe protection on the ring
• Both Nylon and Polyester provide excellent stretch and shock absorption
• Choose the loop splice option for a quick and easy fixed length mooring bridle
• Select the whipping option for an adjustable length solution
• Add anti chafe measures and mooring compensators

Rope/Chain/Rope Bridle Concept in practice:

• Secure one end to your main cleat.
• Pass the other end through the ring and back to the main cleat.
• Make sure you position the chain so that it will take the load on the ring in order to save your warp from chafe

Rope/Chain/Rope Bridle Component Parts:

LIROS Anchorplait White Nylon Article 01058JG Facts, Features and Plus Factors:

• 100% Nylon (Polyamide)
• Available in:
  • Octoplait, White LIROS article 01058
  • Anchorplait, White with exclusive, distinctive easy splice markers LIROS article 01058JG
• 8 strand octoplait construction (2 pairs left hand, 2 pairs right hand) gives a balanced performance and no twist under tension
• Flakes like chain
• Anchorplait/Octoplait is the rope that won't cockle
• High strength and abrasion resistance
• UV stabilised
• Retains flexibility throughout working life
• > 20% working load stretch provides excellent shock absorption

LIROS Octoplait Polyester Article 01049 Facts, Features and Plus Factors:

• Manufactured from 100% polyester
• Available in Navy and Black
• 8 strand balanced square braid construction (2 pairs left hand, 2 pairs right hand)
• Symmetrical manufacture delivers no twist under tension
• Flakes like chain
• LIROS Octoplait will not cockle
• Smooth and comfortable to handle
• Good strength and abrasion resistance
• Retains flexibility throughout working life
• > 15% working load stretch provides excellent shock absorption

The Professional Finish applied by the Jimmy Green Rigging Team including reassuringly secure rope to chain splicing.

Jimmy Green MF Grade 40 Hot Dip Galvanised Calibrated Anchor Chain is sourced exclusively from MF Catenificio Frigerio, Italy

MF Catenificio chain is manufactured, hot dip galvanised and proof tested in their modern research, test and production facility located near Lecco, Lake Como, Italy.

The proof load testing process ensures that each individual weld has been completed successfully.

MF Calibrated Anchor Chain features enhanced Solid Zinc Galvanising treatment with greater micron depth and prolonged protection against corrosion.

MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on MF Chain: MF GRADE 40 SOLID ZINC HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN

Grade 40 Hot Dip Galvanised Calibrated Anchor Chain from Lofrans, renowned worldwide for their range of quality windlasses.

Lofrans calibrated anchor chain is clearly stamped LFR at regular intervals as testimony to their belief in the quality of their chain.

MBL = Manufacturer Break Load
Weight = approximate weight in kg per metre

For more information on Lofrans calibrated anchor chain: LOFRANS GRADE 40 DIN766 CALIBRATED HOT DIP GALVANISED ANCHOR CHAIN

Titan Grade 43 Calibrated Anchor Chain is manufactured, hot dip galvanised, hall-marked, proof tested and engineered by CMP to specifications exceeding DIN766.

Titan Marine Products are a brand of Canada Metal (Pacific), the manufacturers of the world renowned Rocna and Vulcan range of anchors. CMP specialise in the manufacture of World Class Marine Anchor Chain.

MBL = Manufacturer Break Load
Weight = approximate weight in kg per metre

For more information on Titan calibrated anchor chain: TITAN GRADE 43 HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN

William Hackett stainless steel calibrated anchor chain, manufactured on automatic chain making machines from A316L to Grade 3

Service Load Safety Factor = 4:1
M.B.L. = Manufacturer Minimum Break Load

This chain is sourced in the UK from William Hackett Ltd, respected manufacturers and distributors of chain since 1892
