10mm Chain with 16mm 3 Strand Tails - Mooring Bridle

Reference:

Click on the boxes below to reveal your custom build options - Highlight your choice from the drop down menus  DETAILED INSTRUCTIONS

Add ANTI-CHAFE TUBE WEBBING to your basket and request the Rigging Team to sleeve it on to the chain.

£ 0.00 inc VAT

Total Weight: kg

Total Length: m

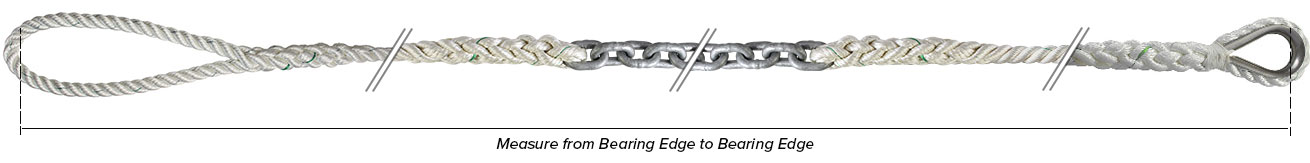

Mooring Lines spliced into either end of a short length of chain can be a real asset for temporary, overnight or permanent mooring arrangements.

The Jimmy Green Team call this arrangement a Mooring Strop with Chain Centre Section

Also known as Rope/Chain/Rope Bridles, the concept is ideal for securing your boat to a fixed pile or mooring buoy through a metal ring.

Set your lengths so that the chain centre section and not the rope comes into contact with the rusty metal, saving the warps from the otherwise ineviatble excessive abrasion.

Webbing can be sleeved over the chain to soften the harsh contact of metal on metal.
Add the appropriate webbing to your basket seaparately and put a note in the 'Name' box at the bottom of the custom build process to request that the webbing is sleeved onto the chain.


Consult the information in our ROPE/CHAIN/BRIDLE SIZE GUIDE to establish the most suitable specification for your motor or sailing yacht, considering the application


Rope/Chain/Rope Bridles Facts, Features and Plus Factors:

  • Spliced and finished in house to your specification by the Jimmy Green Rigging Team
  • Ideal for mooring onto unsympathetic steel rings - piling mooring, the top of a mooring buoy
  • Chain section provides long lasting chafe protection on the ring
  • Both Nylon and Polyester provide excellent stretch and shock absorption
  • Choose the loop splice option for a quick and easy fixed length mooring bridle
  • Select the whipping option for an adjustable length solution
  • Add anti-chafe measures and mooring compensators if required


Rope/Chain/Rope Bridle Concept in practice:

  • Secure one end to your main cleat.
  • Pass the other end through the ring and back to the main cleat.
  • Make sure you position the chain so that it will take the load on the ring in order to save your warp from chafe



Rope/Chain/Rope Bridle Component Parts:


LIROS 3 Strand Nylon Article 00110 Facts, Features and Plus Factors:

  • Available in White and Navy
  • Manufactured from 100% high tenacity heat set Nylon (Polyamide) to DIN EN ISO 1140 standard
  • Thermofixed twisted lay construction
  • Dependable high strength
  • Excellent durability
  • Superb wear and abrasion resistance
  • UV stabilised
  • > 20% working load stretch provides excellent shock absorption
  • Excellent protection against snatch loads

LIROS Break Load: 8mm 1440kg ~ 10mm 2400kg ~ 12mm 3300kg ~ 14mm 4400kg ~ 16mm ~ 5600kg ~ 18mm 7000kg - 20mm 8140kg ~ 24mm 11800kg ~ 30mm 17400kg


LIROS 3 Strand Polyester Article 00111/01110 Facts, Features and Plus Factors:

  • Manufactured to DIN EN ISO 1141 standard
  • Available in Black, Navy and White
  • Heat Set Twisted Lay Construction
  • Best available handling in a twisted lay rope
  • Dependable Strength
  • Excellent Durability
  • Superlative wear and abrasion resistance
  • Superb UV stability and resilience
  • Excellent shock absorbing elongation under load >15% working load stretch

LIROS Break Load: 10mm 2000kg ~ 12mm 2600kg ~ 14mm 3600kg ~ 16mm ~ 5000kg ~ 18mm 6000kg - 20mm 7000kg ~ 24mm 10500kg ~ 30mm 14800kg


The Professional Finish applied by the Jimmy Green Rigging Team including reassuringly secure rope to chain splicing.




MF CatenificioMF Solid Zinc

Jimmy Green MF Grade 40 Hot Dip Galvanised Calibrated Anchor Chain is sourced exclusively from MF Catenificio Frigerio, Italy

MF Catenificio chain is manufactured, hot dip galvanised and proof tested in their modern research, test and production facility located near Lecco, Lake Como, Italy.

The proof load testing process ensures that each individual weld has been completed successfully.

MF Calibrated Anchor Chain features enhanced Solid Zinc Galvanising treatment with greater micron depth and prolonged protection against corrosion.

MF Calibrated Anchor Chain Specification
ChainCalibrationPitchMBLWeight
10mmDIN76628mm6424kg2.35kg
10mmISO 456530mm6424kg2.3kg
MBL = Manufacturer Break Load
Weight = weight in kg per metre

For more information on MF Chain:

MF GRADE 40 SOLID ZINC HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN




Lofrans Chain
Grade 40 Hot Dip Galvanised Calibrated Anchor Chain from Lofrans, renowned worldwide for their range of quality windlasses.

Lofrans calibrated anchor chain is clearly stamped LFR at regular intervals as testimony to their belief in the quality of their chain.

Lofrans Calibrated Anchor Chain Specification
ChainCalibrationPitchMBLWeight
10mmDIN76628mm6893kg2.35kg
10mmISO456530mm6893kg2.3kg

MBL = Manufacturer Break Load
Weight = approximate weight in kg per metre

For more information on Lofrans calibrated anchor chain:

LOFRANS GRADE 40 DIN766 CALIBRATED HOT DIP GALVANISED ANCHOR CHAIN




Titan Grade 43 Calibrated Anchor Chain is manufactured, hot dip galvanised, hall-marked, proof tested and engineered by CMP to specifications exceeding DIN766

Titan Chain Titan Marine Products are a brand of Canada Metal (Pacific), the manufacturers of the world renowned Rocna and Vulcan range of anchors. CMP specialise in the manufacture of World Class Marine Anchor Chain

Titan Calibrated Anchor Chain Specification
ChainCalibrationPitchMBLWeight
10mmDIN76628mm7200kg2.35kg
10mmISO456530mm7200kg2.3kg
MBL = Manufacturer Break Load
Weight = approximate weight in kg per metre

For more information on Titan calibrated anchor chain:

TITAN GRADE 43 HOT DIP GALVANISED CALIBRATED ANCHOR CHAIN





William Hackett stainless steel calibrated anchor chain, manufactured on automatic chain making machines from A316L to Grade 3

Jimmy Green G3 stainless steel chain specification

Service Load Safety Factor = 4:1
M.B.L. = Manufacturer Minimum Break Load

This chain is sourced in the UK from William Hackett Ltd, respected manufacturers and distributors of chain since 1892

Cromox products are manufactured in the Ketten Walder factory based near Munich in Germany.
Ketten Walder have been producing the highest quality marine grade 60 chains for 60 years.
The attention to detail, stringent testing and checking processes ensure that every chain meets the highest standard.

Cromox chains are offered in G6 (AISI 316L) and G6 Plus (AISI 318LN) specifications.
G6 and G6 Plus both come as standard with a bright polished finish.
Additionally, G6 Plus comes with a 2-year corrosion free warranty as standard.
This can be increased to 3 years with an extra electropolish process which smooths out micro imperfections and removes ferritic ions to prevent corrosion and staining.

After saving your customised product, remember to add it to your basket.
