Swivelling Connector

Allows rotation between anchor and chain

Snag-free sleek profile

AISI 316 stainless steel

Manufactured by Osculati in Italy

£29.00

More Information
Features
Downloads

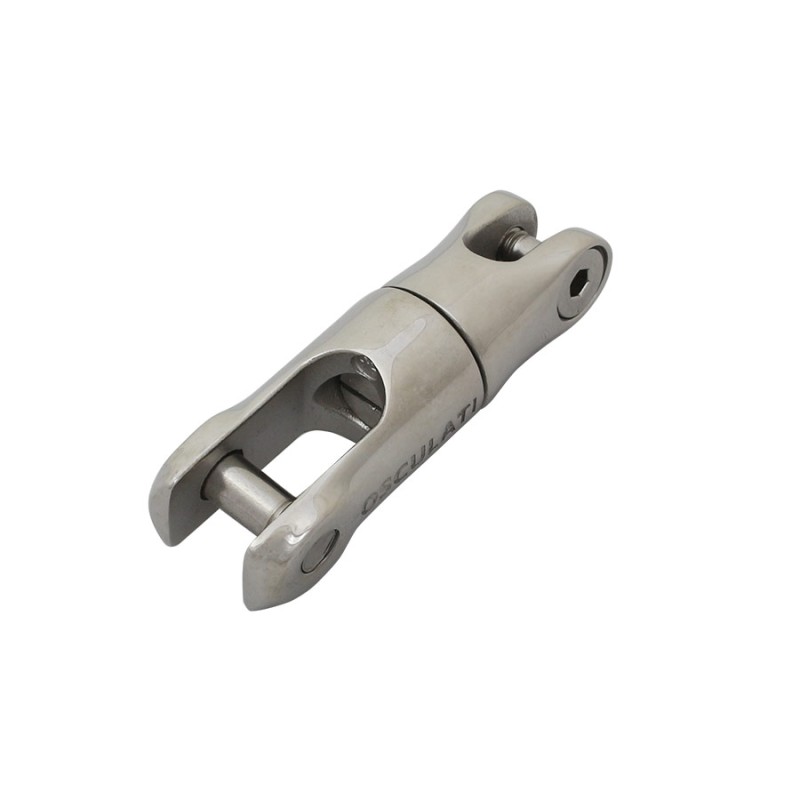

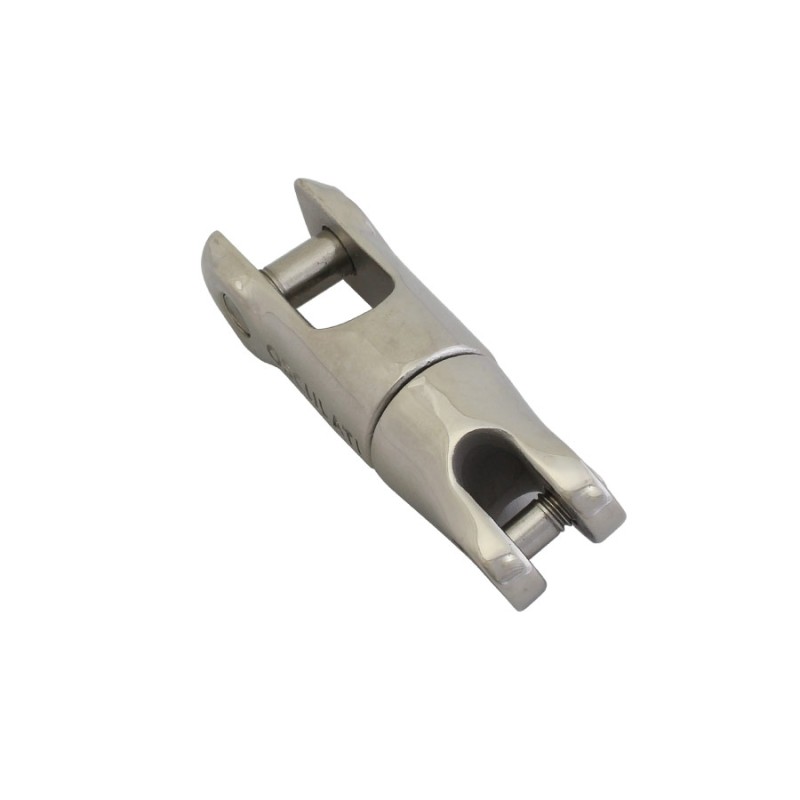

The Oscualti Swivel Anchor Connector is manufactured from precision-cast AISI 316 stainless steel.

The sleek profile design, without any protrusions, facilitates snag-free routing through the stemhead and over the bow roller.

This is a new reinforced Osculati design with an additional finish.

Manufactured exclusively by Osculati in Italy.

Osculati Production and Testing

Osculati Anchor Swivel Connector Specifications
Chain Ø  MBL
6/8mm 35Kn 10mm 16mm 21mm 9mm 95mm 7mm
9/10mm 61.5Kn 13mm 21mm 28mm 11mm 120mm 11mm

MBL = Osculati Manufacturer Break Load

Anchor Swivel Connection Diagram

  • Chain Size - 6mm
  • Chain Size - 8mm
  • Chain Size - 10mm

Osculati Anchor Swivel 8mm

Osculati 8mm Swivel Anchor Connector Data Sheet

Download (1.07MB)

Osculati Anchor Swivel 10mm

Osculati 10mm Swivel Anchor Connector Data Sheet

Download (88.67KB)
