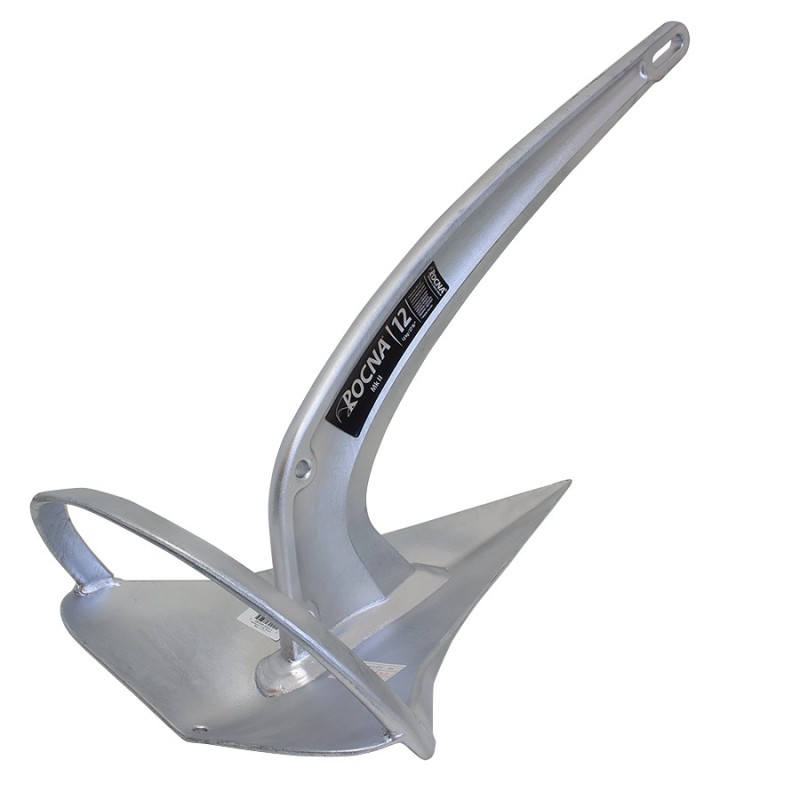

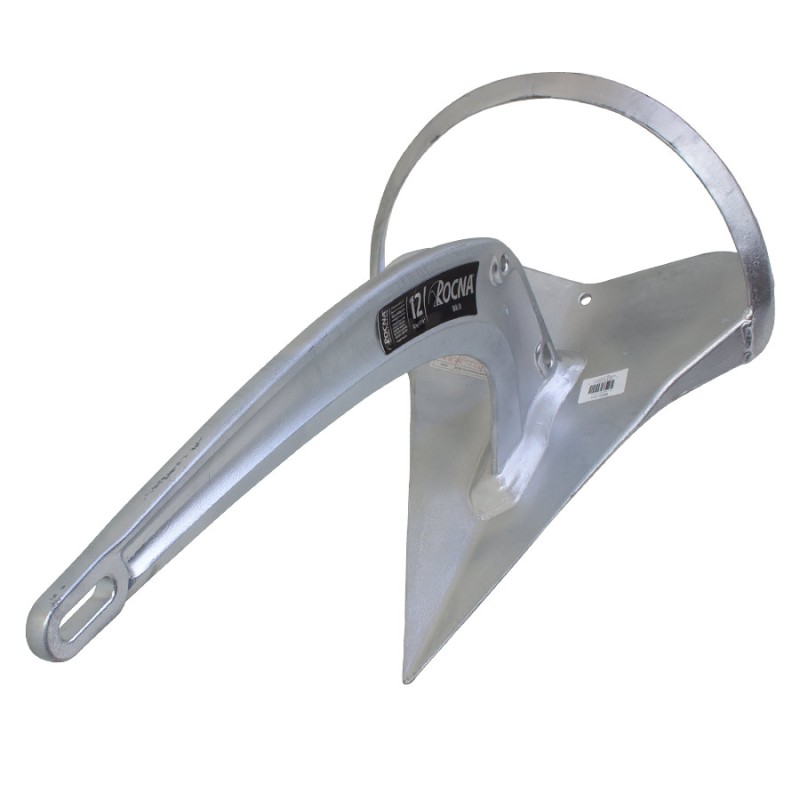

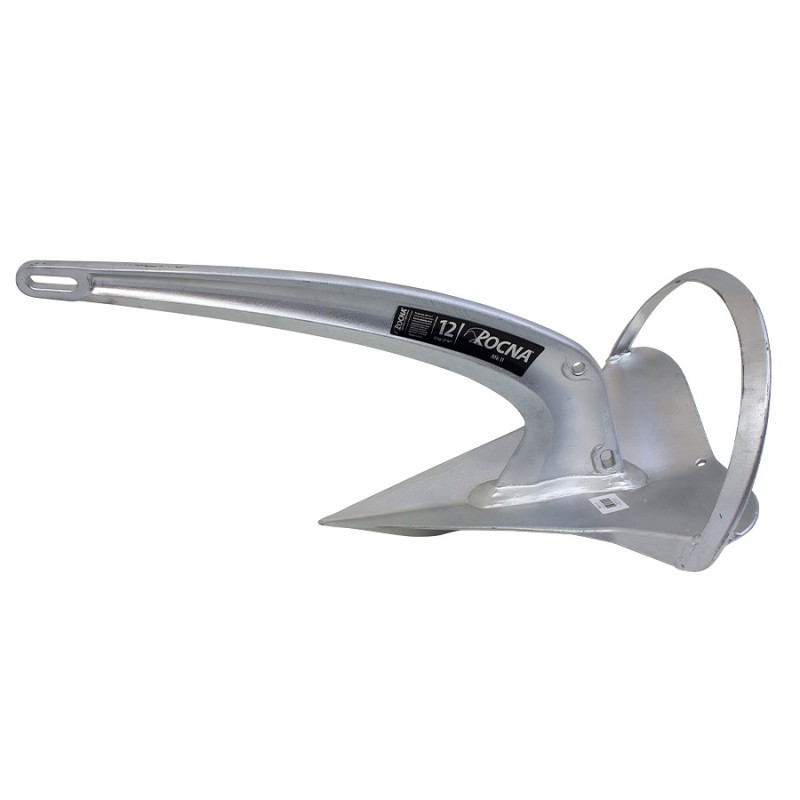

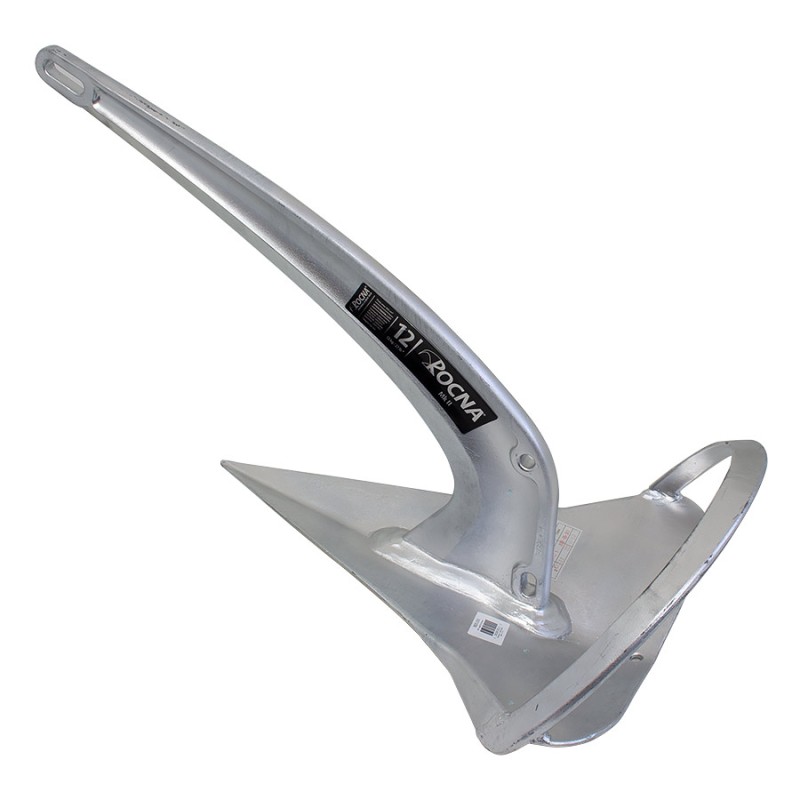

The long-awaited Rocna Mark 2 Galvanised Anchor

Advanced hybrid combination of the Rocna and Vulcan designs

Designed by Peter Smith, the architect of the original Rocna anchor

9kg, 12kg, 15kg, 20kg, 25kg and 33kg in stock

40kg and 50kg are available to order, with a 6-week lead time

£415.00

Pay later with PayPal Credit
More Information
Features
Accessories
Downloads

The Rocna MarkII is the result of taking all the best design aspects of the original Rocna and Vulcan and refining them into one technologically advanced and enhanced anchor.

PRECISION SETTING: The roll-foil™ (A) makes certain that the anchor consistently reaches the optimal angle for penetration. It also assists the skids in directing the fluke tip, which effectively chisels into the seabed, ensuring an immediate and reliable burial.

ROBUST ANCHORING CAPABILITY: The concave fluke (C) is engineered to offer maximum resistance, ensuring a rock-solid hold. In soft seabeds, this design delivers the secure anchoring power you require. On hard or weedy sea floors, the weighted chisel tip (B) effortlessly cuts through and bites deep for unparalleled performance.

ROLL-FOIL™ INNOVATION: Crafted from the Rocna roll-bar, the patented roll-foil™ (A) enhances self-righting capability, guaranteeing a consistently reliable set. The roll-foil's segmented profile serves distinct roles: aiding in the event of the anchor landing upside-down, facilitating deeper penetration and superior holding once buried during setting, and improving soil flow to reduce clogging..

I+V PROFILE™ SHANK: Utilising high-tensile steel, the Rocna Mk II shank (E) is reinforced by our patented I+V profile™ design. This computer-optimized I-beam geometry imparts increased resistance to bending, making the Mk II the most robust Rocna shank. The I+V profile also enhances setting performance, as the lower V-edge cuts into the seabed, enabling the anchor to penetrate effortlessly for a deep and secure burial.

The Rocna Recommended Size Guide is available to view in Downlods (above) - Rocna Mark 2 (MarkII) Sizing is illustrated below:

Rocna Mark2 Anchor Size Guide

Rocna Mk 2 dimensions


  • Finish - Galvanised
  • Anchor Weight kg - 4.0kg
Kong Swivel Anchor Connector Stainless Steel AISI 316
Kong stainless steel fixed anchor connector
Ultra flip swivel

Osculati Articulated Swivel Anchor Connector
3 Links of Anchor Chain

Osculati Twist Swivel Anchor Connector
Mantus Swivel
3 Links of Stainless Steel Chain

cromox Twister Anchor Connector
SIDERMARINE SwivelMarine® Anchor Connector

Rocna Mark 2 Size Guideg

Rocan mark 2 Anchor Selection Guide

Download (492.22KB)

Rocna MKII Pattern 4

Rocna Mark2 Full Size Pattern 4kg

Download (738.21KB)

Rocna MKII Pattern 6

Rocna Mark2 Full Size Pattern 6kg

Download (834.84KB)

Rocna MKII Pattern 9

Rocna Mark2 Full Size Pattern 9kg

Download (846.8KB)

Rocna MKII Pattern 12

Rocna Mark2 Full Size Pattern 12kg

Download (1.07MB)

Rocna MKII Pattern 15

Rocna Mark2 Full Size Pattern 15kg

Download (1.15MB)

Rocna MKII Pattern 20

Rocna Mark2 Full Size Pattern 20kg

Download (1.15MB)

Rocna MKII Pattern 25

Rocna Mark2 Full Size Pattern 25kg

Download (1.33MB)

Rocna MKII Pattern 33

Rocna Mark2 Full Size Pattern 33kg

Download (1.38MB)

Rocna MKII Pattern 40

Rocna Mark2 Full Size Pattern 40kg

Download (1.73MB)

Rocna MKII Pattern 50

Rocna Mark2 Full Size Pattern 50kg

Download (1.78MB)
